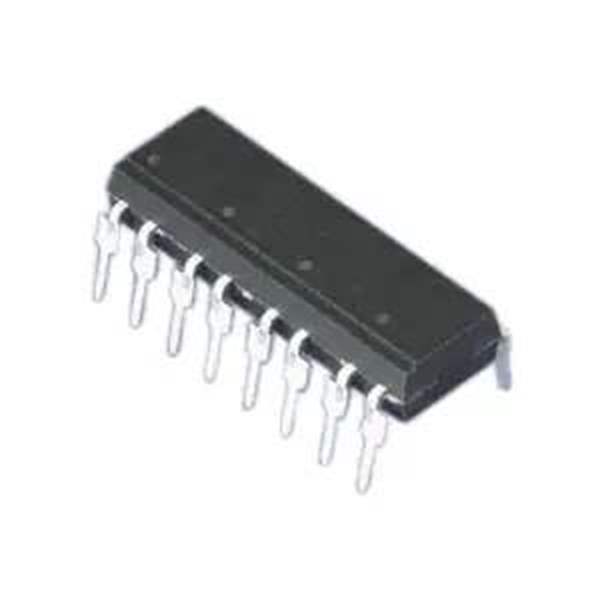

PC844XJ0000F

Part No PC844XJ0000F
Manufacturer Sharp Microelectronics
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLTR 5KV 4CH TRANS 16-DIP / Optoisolator Transistor Output 5000Vrms 4 Channel 16-DIP
Datasheet
PC844XJ0000F Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators - Optoisolators - Transistor, Photovoltaic Output Optoisolators
Mfr Sharp Microelectronics
Package Tube
Product Status Obsolete
Number of Channels 4
Voltage - Isolation 5000Vrms
Current Transfer Ratio (Min) 20% @ 1mA
Current Transfer Ratio (Max) 300% @ 1mA
Rise / Fall Time (Typ) 4µs, 3µs
Input Type AC, DC
Output Type Transistor
Voltage - Output (Max) 80V
Current - Output / Channel 50mA
Voltage - Forward (Vf) (Typ) 1.2V
Current - DC Forward (If) (Max) 50 mA
Vce Saturation (Max) 200mV
Temperature Range - Operating -30°C ~ 100°C
Mounting Type Through Hole
Package / Case 16-DIP (0.300", 7.62mm)
Supplier Device Package 16-DIP
Standard Package 25 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 930062-PC844XJ0000F
Ultra Librarian 3D Model Ultra Librarian PC844XJ0000F CAD Model

Description

The PC844XJ0000F is a 4-channel optoisolator from Sharp Microelectronics. It belongs to the category of isolators - optoisolators - transistor, photovoltaic output optoisolators.

  • Category: isolators - optoisolators - transistor, photovoltaic output optoisolators
  • Channels: 4-channel
  • Package: 16-DIP
  • Voltage Isolation: 5000Vrms
  • Current Transfer Ratio: 20% @ 1mA
  • Maximum Forward Current: 50mA
  • Maximum Forward Voltage: 1.2V
  • Rise/Fall Time: 4μs/3μs
  • Product Status: obsolete
