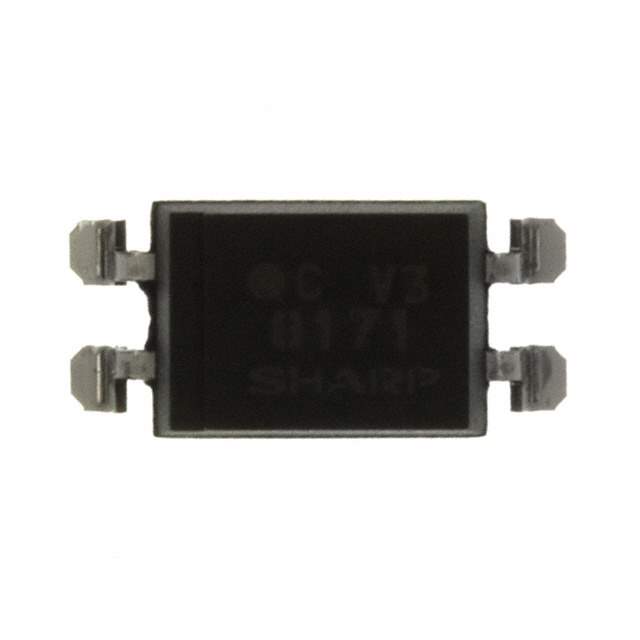

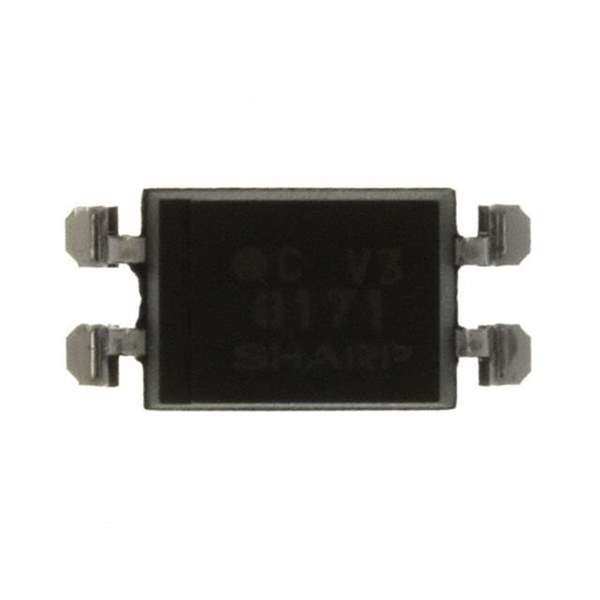

PC81716NIP0F Real Image
Same model may have multiple batches, images only for reference.

PC81716NIP0F

Part No PC81716NIP0F
Manufacturer Sharp Microelectronics
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATOR 5KV TRANS 4SMD
Datasheet
PC81716NIP0F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Number of Channels 1
Isolation Voltage 5000Vrms
Minimum DC Current Transfer Ratio 160% @ 500μA
Maximum DC Current Transfer Ratio 500% @ 500μA
Rise and Fall Time 4μs, 3μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 80V
Channel Output Current 50mA
Forward Voltage 1.2V
Continuous forward current- Max 10mA
Vce Saturation (Max) 200mV
Temperature Range - Operating -30°C to 100°C
Mounting SMD (SMT)
Case / Package 4-Mini-Flat
Win Source Part Number 1086692-PC81716NIP0F
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PC81716NIP0F CAD Model

Description

The Sharp Microelectronics PC817-16NIP0F is an obsolete (EOL) isolator from.

  • Case/Package: 4-mini-flat
  • Pitch: -
  • Channel: 1
  • Output Type: Transistor
  • Input Type: DC
  • Isolation Voltage: 5000Vrms
  • Forward Voltage: 1.2V
  • Vce Saturation (max): 200mV
  • Minimum DC Current Transfer Ratio: 160% @ 500μA
  • Maximum DC Current Transfer Ratio: 500% @ 500μA
  • Rise Time: 4μs
  • Fall Time: 3μs
  • Maximum Output Voltage: 80V
  • Channel Output Current: 50mA
  • Continuous Forward Current-Max: 10mA
  • Temperature Range: -30°C to 100°C
  • Supply and Demand Status: Balance
