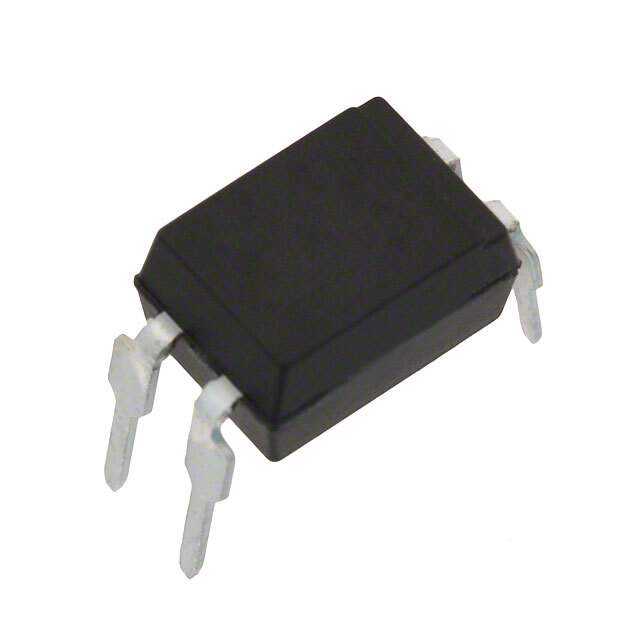

PC851XNNSZ0F Real Image
Same model may have multiple batches, images only for reference.

PC851XNNSZ0F

Part No PC851XNNSZ0F
Manufacturer Sharp Microelectronics
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATOR 5KV TRANS 4DIP
Datasheet
PC851XNNSZ0F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Tube/Rail
Number of Channels 1
Isolation Voltage 5000Vrms
Rise and Fall Time 4μs, 5μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 350V
Channel Output Current 50mA
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Vce Saturation (Max) 300mV
Temperature Range - Operating -25°C to 100°C
Mounting Through Hole
Case / Package 4-DIP
Win Source Part Number 061183-PC851XNNSZ0F
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PC851XNNSZ0F CAD Model

Description

The Sharp Microelectronics PC851XNNSZ0F is a transistor output optocoupler that comes in a 4-DIP package.

  • Package: 4-DIP
  • Applications: isolator
  • Isolation Voltage: 5000Vrms
  • Forward Voltage: 1.2V
  • Vce Saturation (max): 300mV
  • Channel Output Current: 50mA
  • Maximum Output Voltage: 350V
  • Minimum DC Current Transfer Ratio: not specified
  • Switching Turn-On and Turn-Off Time: not specified
  • Rise Time: 4μs
  • Fall Time: 5μs
  • Temperature Range: -25°C to 100°C
  • Mounting: through hole
  • Supplied: in a tube/rail package
  • Status: popular and has a balanced supply and demand status
