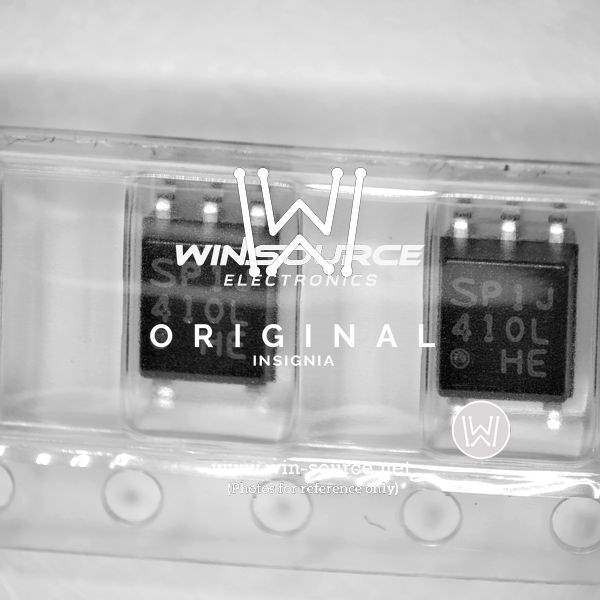

Product photo

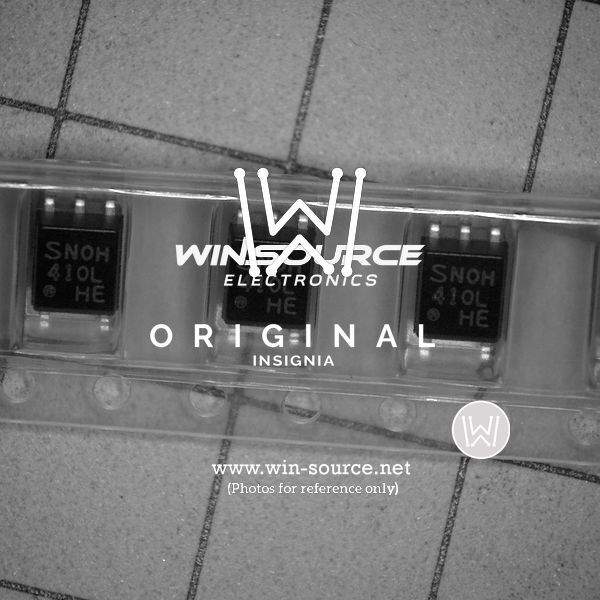

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Isolators - Optoisolators - Logic Output Optoisolators
Mfr Sharp Microelectronics
Package Bulk
Product Status Obsolete
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Voltage - Isolation 3750Vrms
Common Mode Transient Immunity (Min) 10kV/µs
Input Type DC
Output Type Open Collector
Current - Output / Channel 50 mA
Data Rate 10Mbps
Propagation Delay tpLH / tpHL (Max) 75ns, 75ns
Rise / Fall Time (Typ) 20ns, 10ns
Voltage - Forward (Vf) (Typ) 1.6V
Current - DC Forward (If) (Max) 20mA
Voltage - Supply 4.5V ~ 5.5V
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Base Product Number PC410
Standard Package 1 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 958969-PC410LENIP0F
Ultra Librarian 3D Model Ultra Librarian PC410LENIP0F CAD Model

Description

The 958969-PC410LENIP0F is a logic output optoisolator from Sharp Microelectronics.

  • Category: Isolators - Optoisolators - Logic Output Optoisolators
  • Packaging: Bulk
  • Standard Package: 1 piece
  • Output Type: Open Collector
  • Data Rate: 10Mbps
  • Input Type: DC
  • Maximum DC Forward Current: 20mA
  • Forward Voltage: 1.6V (typical)
  • Rise Time: 20ns
  • Fall Time: 10ns
  • Current Output per Channel: 50 mA
  • Isolation Voltage: 3750Vrms
  • Inputs on Side 1: 1
  • Inputs on Side 2: 0
  • Common Mode Transient Immunity: 10kV/μs (minimum)
  • Propagation Delay (tpLH): 75ns (maximum)
  • Propagation Delay (tpHL): 75ns (maximum)
  • Voltage Supply Range: 4.5V to 5.5V
  • Mounting: Surface Mount
  • Operating Temperature: -40°C to 85°C
  • HTSUS Code: 8541.49.8000
  • Product Status: Obsolete
