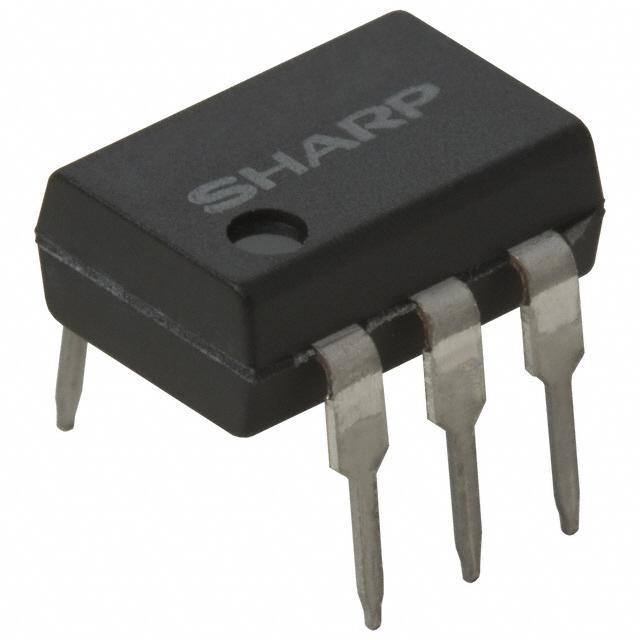

Same model may have multiple batches, images only for reference.
PC3SD21NTZCF Sharp Microelectronics
Same model may have multiple batches, images only for reference.

PC3SD21NTZCF

Part No PC3SD21NTZCF
Manufacturer Sharp Microelectronics
Catalog Optoisolators - Triac, SCR Output
Description OPTOISOLATOR 5KV TRIAC 6DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Tube/Rail
Status Obsolete(EOL)
Output Type Triac
Zero Crossing Circuit Yes
Number of Channels 1
Isolation Voltage 5000Vrms
Voltage - Off State 600V
Static dV/dt (Min) 1kV/μs
Current - LED Trigger (Ift) (Max) 5mA
Current - On State (It (RMS)) (Max) 100mA
Current - Hold (Ih) 3.5mA
Turn On Time 50μs (Max)
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Temperature Range - Operating -30°C to 100°C
Mounting Through Hole
Case / Package 6-DIP
Approvals CSA, UR
Win Source Part Number 1086641-PC3SD21NTZCF
Popularity Medium
Supply and Demand Status Balance
Quantity per package 500
Ultra Librarian 3D Model Ultra Librarian PC3SD21NTZCF CAD Model

Description

The Sharp Microelectronics PC3SD21NTZCF is a through-hole triac output optocoupler that comes in a 6-DIP package.

  • Forward Voltage: 1.2V
  • Off-State Voltage: 600V
  • Maximum Current: 100mA
  • Minimum Static dV/dt: 1kV/μs
  • Zero-Crossing Circuit: Yes
  • Turn-On Time (Max): 50μs
  • Channel Count: 1
  • Isolation Voltage: 5000Vrms
  • Approvals: CSA, UR
  • Operating Temperature: -30°C to 100°C
  • Status: Obsolete(EOL)
  • Packaging: Tube/Rail
  • Quantity per Package: 500
