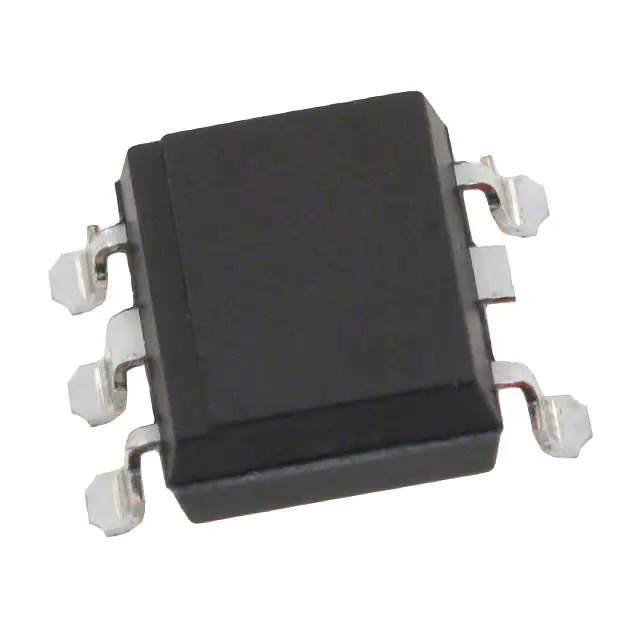

PC3SD11NXZDF Real Image
Same model may have multiple batches, images only for reference.

PC3SD11NXZDF

Part No PC3SD11NXZDF
Manufacturer Sharp Microelectronics
Catalog Optoisolators - Triac, SCR Output
Description OPTOISOLATOR 5KV TRIAC 6SMD / Optoisolator Triac Output 5000Vrms 1 Channel 6-SMD
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators - Optoisolators - Triac, SCR Output Optoisolators
Mfr Sharp Microelectronics
Package Tube
Product Status Obsolete
Output Type Triac
Zero Crossing Circuit No
Number of Channels 1
Voltage - Isolation 5000Vrms
Voltage - Off State 600 V
Static dV/dt (Min) 1kV/µs
Current - On State (It (RMS)) (Max) 100 mA
Current - Hold (Ih) 3.5mA
Turn On Time 100µs (Max)
Voltage - Forward (Vf) (Typ) 1.2V
Current - DC Forward (If) (Max) 50 mA
Temperature Range - Operating -30°C ~ 100°C
Mounting Type Surface Mount
Package / Case 6-SMD
Supplier Device Package 6-SMD
Approval Agency CSA, UR
Base Product Number PC3SD11
Standard Package 50 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 888646-PC3SD11NXZDF
Ultra Librarian 3D Model Ultra Librarian PC3SD11NXZDF CAD Model

Description

The PC3SD11NXZDF is an optoisolator triac from Sharp Microelectronics.

  • Series: PC3SD11
  • Package: 6-SMD
  • Maximum Forward Current (If): 50 mA
  • Forward Voltage (Vf): 1.2V
  • Maximum Off-State Voltage: 600V
  • Maximum On-State Current (It(RMS)): 100mA
  • Number of Channels: 1
  • Isolation Voltage: 5000Vrms
  • Current Hold (Ih): 3.5mA
  • Static dV/dt: 1kV/μs
  • Turn-On Time: 100μs (max)
  • Mounting Type: Surface Mount
  • Operating Temperature Range: -30°C to 100°C
  • Applications: Motor control, solid-state relays, and lighting control
