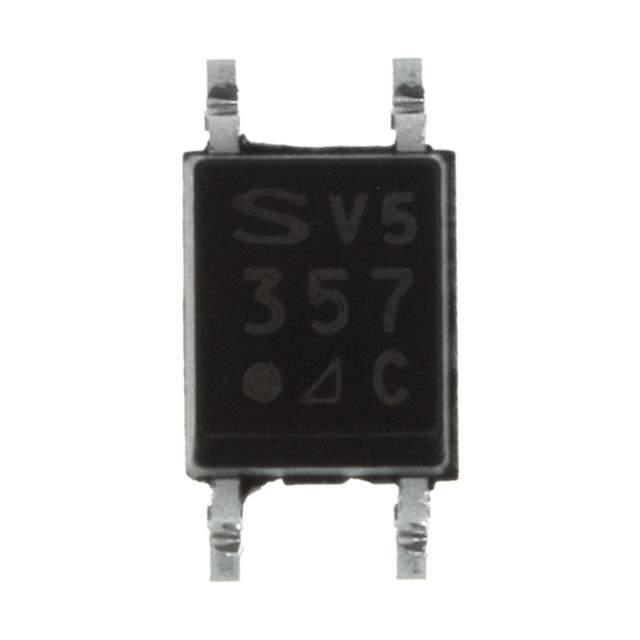

The PC357N7T is a series of high-density mounting type photocouplers manufactured by Sharp Microelectronics. These photocouplers provide electrical isolation between input and output circuits, making them ideal for various applications requiring safety and noise immunity. They consist of an infrared emitting diode (IRED) optically coupled to a phototransistor.

Applications

• Programmable Logic Controllers (PLCs): Isolation between control and output stages.
• Inverter circuits: Protecting microcontrollers from high-voltage inverter stages.
• Power supplies: Providing feedback isolation in switching power supplies.
• Microprocessor input/output isolation: Protecting microprocessors from external voltage spikes.
• General-purpose isolation: Isolating sensitive circuits from noisy environments.

Features

• High Isolation Voltage: Provides a high degree of electrical isolation.
• Compact Package: Allows for high-density mounting on PCBs.
• CTR (Current Transfer Ratio): Provides efficient signal transfer between input and output.
• Through-hole and surface-mount options: Available in various packages for different mounting requirements.
• RoHS Compliant: Environmentally friendly, adheres to RoHS standards.

Benefits

• Enhanced Safety: Protects users and equipment from high voltages.
• Improved Noise Immunity: Isolates sensitive circuits from noisy environments.
• Simplified Circuit Design: Reduces the complexity of isolation circuits.
• Reduced Board Space: Compact package allows for efficient PCB layout.
• Increased System Reliability: Prevents electrical noise and voltage spikes from damaging sensitive components.

Additional Details

The PC357N7T photocoupler's current transfer ratio (CTR) is a crucial parameter, indicating the efficiency of signal transfer. The isolation voltage rating specifies the maximum voltage that the photocoupler can withstand between its input and output. The forward voltage and current of the IRED and the collector-emitter voltage and current of the phototransistor are important parameters for circuit design. It is available in different package types such as DIP and SMD.
