Same model may have multiple batches, images only for reference.

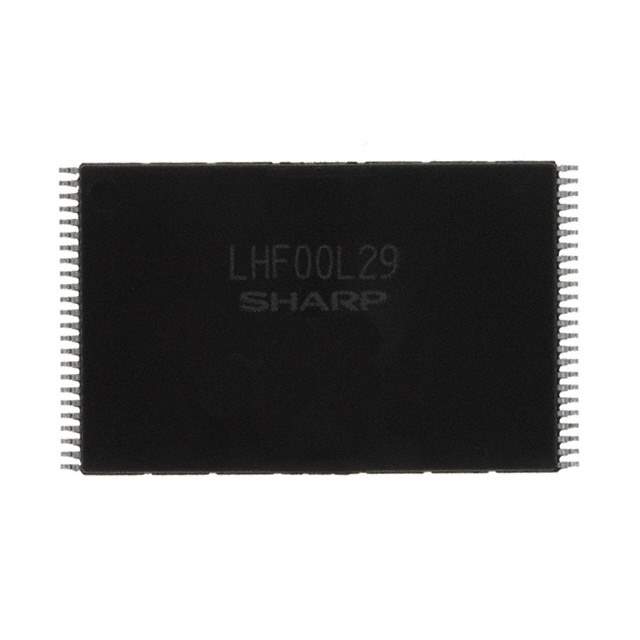

LHF00L29 Real Image
Same model may have multiple batches, images only for reference.

LHF00L29

Part No LHF00L29
Manufacturer Sharp Microelectronics
Catalog Flash
Description IC FLASH 16MBIT 70NS 48TSOP
Datasheet
LHF00L29 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Sharp Microelectronics
Packaging Tray
Status Obsolete(EOL)
Memory Format FLASH
Technology FLASH
Memory Size 16Mb (1M x 16)
Access Time 70ns
Supply Voltage - Operating 2.7 V to 3.6 V
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 48-TSOP
Win Source Part Number 041051-LHF00L29
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LHF00L29 CAD Model

Description

The Sharp Microelectronics LHF00L29 is an obsolete (EOL) integrated circuit that has a memory size of 16Mb (1M x 16) and an access time of 70ns.

  • Memory Size: 16Mb (1M x 16)
  • Access Time: 70ns
  • Supply Voltage Range: 2.7 V to 3.6 V
  • Package: 48-TSOP package
  • Popularity: medium
  • Supply and Demand Status: balanced
