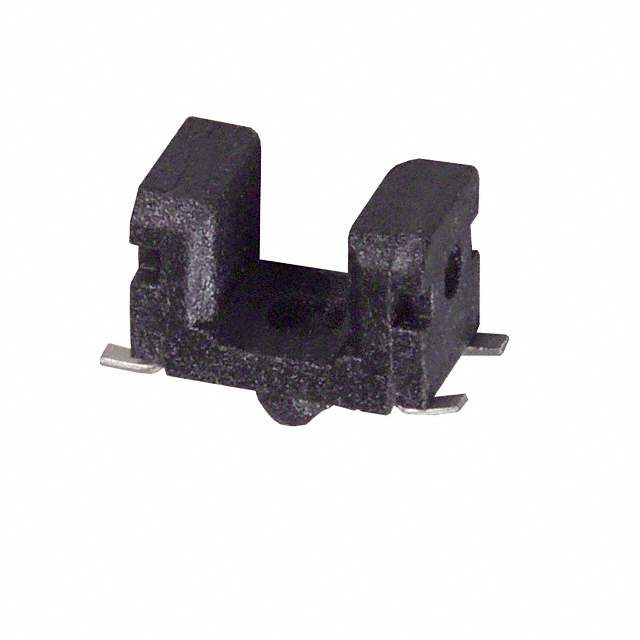

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Sensing Distance 0.079" (2mm)
Sensing Method Transmissive
Continuous forward current- Max 50mA
Maximum Current Collector 20mA
VCEO Maximum Collector-Emitter Breakdown Voltage 35V
Response Time 50μs, 50μs
Temperature Range - Operating -25°C to 85°C
Mounting SMD (SMT)
Type Unamplified
Win Source Part Number 016690-GP1S092HCPIF
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian GP1S092HCPIF CAD Model

Description

This Sharp Microelectronics sensor is a high-quality component designed to detect objects using transmissive sensing.

  • Sensing Distance: 0.079 inches (2mm)
  • Response Time: 50μs
  • Mounting Type: Surface Mount Technology (SMT)
  • Maximum Collector Current: 20mA
  • Collector-Emitter Breakdown Voltage: 35V
  • Continuous Forward Current: 50mA
  • Temperature Range: -25°C to 85°C
