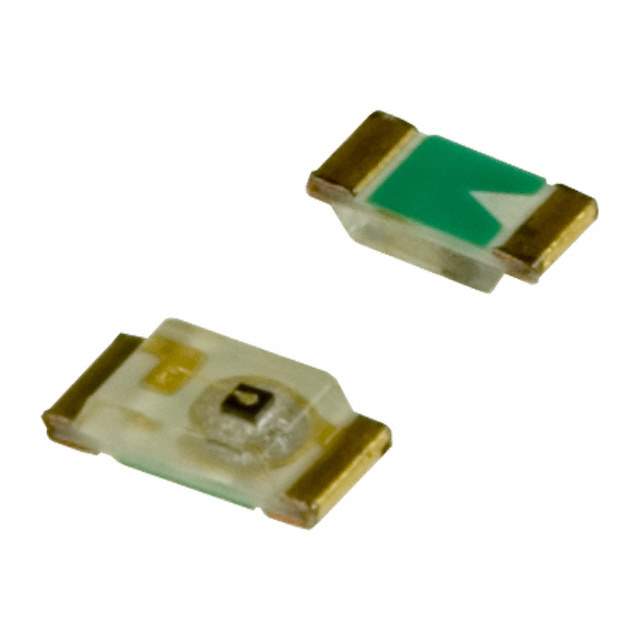

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Color Blue
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 35mcd
Lens Style/Size Rectangle with Flat Top, 1.00mm x 0.80mm
Forward Voltage 3.2V
Current - Test 10mA
Viewing Angle 120°
Mounting SMD (SMT)
Wavelength - Dominant 472nm
Wavelength - Peak 470nm
Case / Package Chip LED
Height (Max) 0.65mm
Win Source Part Number 1040998-GM1BC55250AC
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian GM1BC55250AC CAD Model

Description

The GM1BC55250AC from Sharp Microelectronics is a chip LED component with a forward voltage of 3.2V.

  • Viewing Angle: 120°
  • Millicandela Rating: 35mcd
  • Lens Style/Size: Rectangle with flat top, 1.00mm x 0.80mm
  • Lens Color: Colorless with clear transparency
  • Wavelength-Dominant: 472nm
  • Wavelength-Peak: 470nm
  • Product Status: Obsolete (EOL)
  • Popularity: Medium
