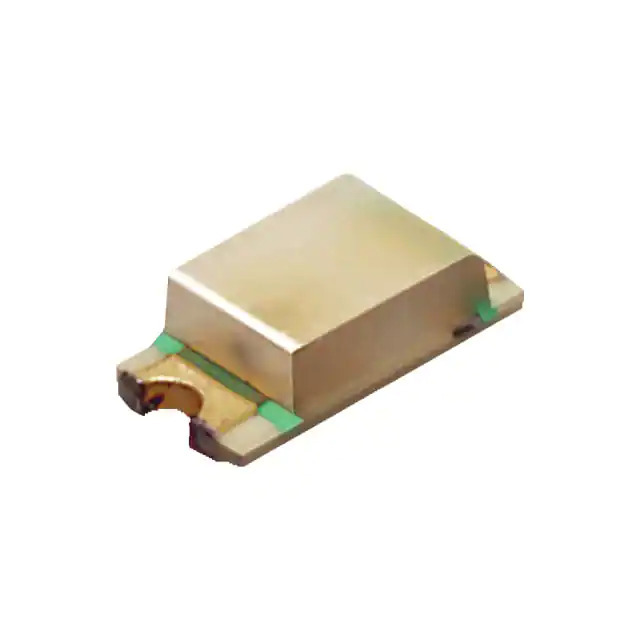

Same model may have multiple batches, images only for reference.
SML-D15UWT86C Rohm Semiconductor
Same model may have multiple batches, images only for reference.

SML-D15UWT86C

Part No SML-D15UWT86C
Manufacturer Rohm Semiconductor
Catalog LED Indication - Discrete
Description LED RED 1608 SMD
Datasheet
SML-D15UWT86C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - LED Indication - Discrete
Mfr Rohm Semiconductor
Series Automotive, AEC-Q101, SML-D15
Package Tape & Reel
Product Status Active
Color Red
Configuration Standard
Lens Color White
Lens Transparency -
Millicandela Rating 112mcd
Lens Style Rectangle with Flat Top
Lens Size 1.20mm x 0.80mm
Voltage - Forward (Vf) (Typ) 2V
Current - Test 20mA
Viewing Angle -
Mounting Type Surface Mount
Wavelength - Dominant 620nm
Wavelength - Peak -
Features -
Package / Case 0603 (1608 Metric)
Supplier Device Package 1608 (0603)
Size / Dimension 1.60mm L x 0.80mm W
Height (Max) 0.65mm
Base Product Number SML-D15
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1371891-SML-D15UWT86C
Ultra Librarian 3D Model Ultra Librarian SML-D15UWT86C CAD Model

Description

The SML-D15UWT86C is a surface mount LED indicator manufactured by Rohm Semiconductor.

  • Application: Automotive Systems
  • Lens Style: Rectangular, Flat Top
  • Package: 0603 (1608 Metric)
  • Size: 1.60mm length x 0.80mm width
  • LED Color: Red
  • Dominant Wavelength: 620nm
  • Forward Voltage (Vf): 2V @ 20mA
  • Millicandela Rating: 112mcd
  • Operating Temperature: Wide Range
  • AEC-Q101: Suitable for Automotive
