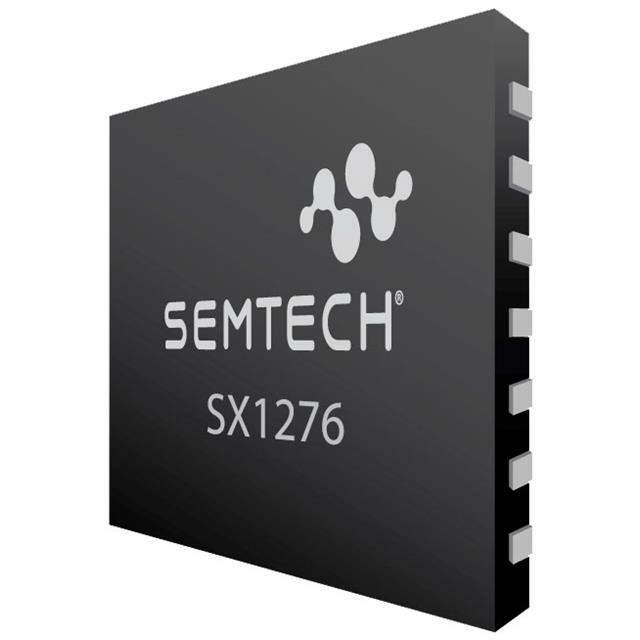

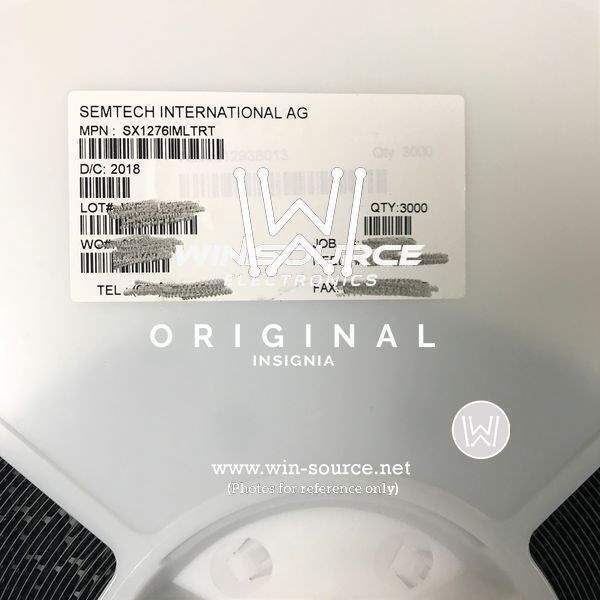

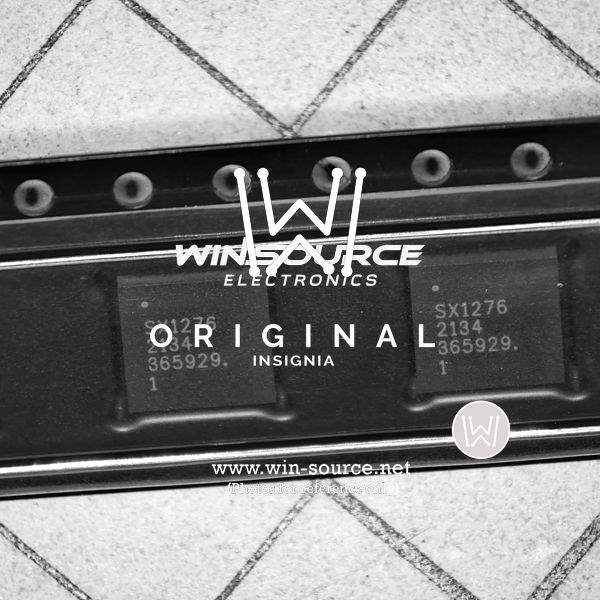

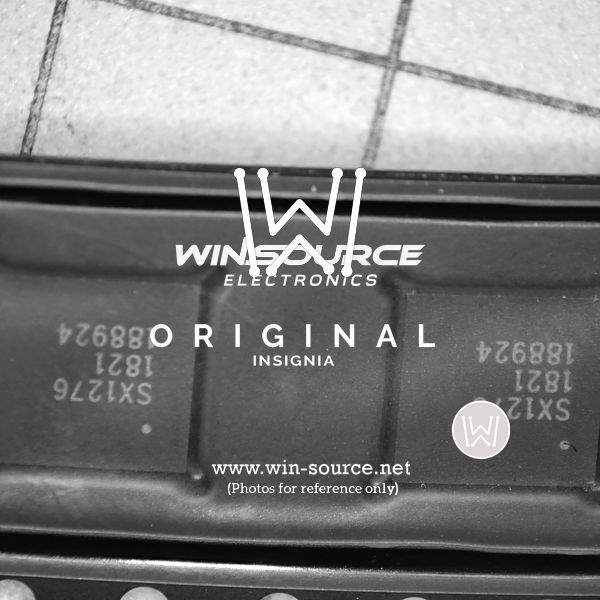

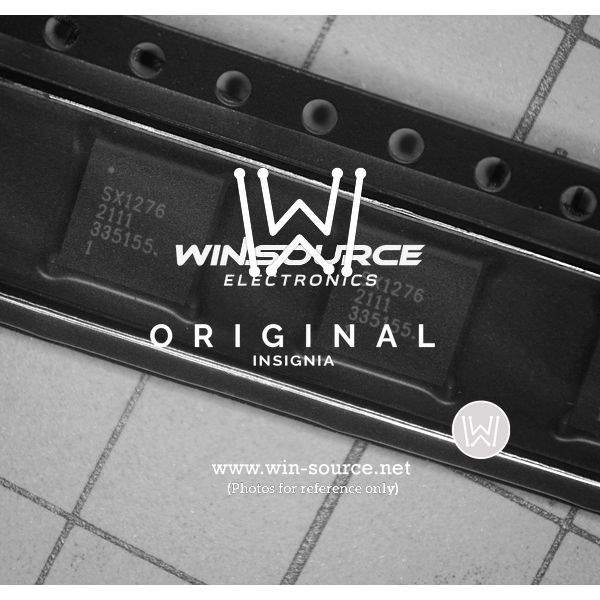

SX1276IMLTRT Semtech Corporation SX1276IMLTRT Real Image SX1276IMLTRT label picture SX1276IMLTRT real image6991 SX1276IMLTRT real image6992 SX1276IMLTRT Real Image1 SX1276IMLTRT Real Image2 SX1276IMLTRT Real Image3 SX1276IMLTRT Real Image4
Same model may have multiple batches, images only for reference.
SX1276IMLTRT Semtech Corporation SX1276IMLTRT Real Image SX1276IMLTRT label picture SX1276IMLTRT real image6991 SX1276IMLTRT real image6992 SX1276IMLTRT Real Image1 SX1276IMLTRT Real Image2 SX1276IMLTRT Real Image3 SX1276IMLTRT Real Image4
SX1276IMLTRT Semtech Corporation SX1276IMLTRT Real Image SX1276IMLTRT label picture SX1276IMLTRT real image6991 SX1276IMLTRT real image6992 SX1276IMLTRT Real Image1 SX1276IMLTRT Real Image2 SX1276IMLTRT Real Image3 SX1276IMLTRT Real Image4
Same model may have multiple batches, images only for reference.

SX1276IMLTRT

Part No SX1276IMLTRT
Manufacturer Semtech Corporation
Catalog RF Transceiver ICs
Description IC RF TXRX 802.15.4 28VQFN
Datasheet
SX1276IMLTRT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Semtech Corporation
Packaging Reel - TR
Status Active
Type TxRx Only
RF Family/Standard 802.15.4
Protocol LoRa
Modulation FSK, GFSK, GMSK, MSK, OOK
Frequency 137MHz to 1.02GHz
Data Rate (Max) 300kbps
Power - Output 20dBm
Sensitivity -148dBm
Serial Interfaces SPI
GPIO 6
Supply Voltage - Operating 1.8 V to 3.7 V
Current - Receiving 10.8mA to 12mA
Current - Transmitting 20mA to 120mA
Temperature Range - Operating -40°C to 85°C
Dimension 28-VQFN Exposed Pad
Win Source Part Number 031629-SX1276IMLTRT
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name SX1276
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2024
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian SX1276IMLTRT CAD Model

Description

The Semtech Corporation SX1276IMLTRT is a TxRx only electronic component that operates in the frequency range of 137MHz to 1.02GHz.

  • Protocol: LoRa
  • Data Rate: 300kbps (max)
  • Power Output: 20dBm
  • Sensitivity: -148dBm
  • Memory Size: -
  • Current Consumption (Receiving): 10.8mA to 12mA
  • Current Consumption (Transmitting): 20mA to 120mA
  • GPIOs: 6
  • Serial Interfaces: SPI
  • Category: RF/IF and RFID
  • Dimension: 28-VQFN Exposed Pad
  • Operating Temperature: -40°C to 85°C
  • Supply Voltage: 1.8 V to 3.7 V
  • Alternative Parts: RFM69HW-433S2, RFM69HW-868S2, and RFM69HW-915S2
  • Halogen-Free: Compliant
  • EOL Date: 2024 (estimated)
  • Supply and Demand: Balanced
  • Quantity per Package: 3k pcs
