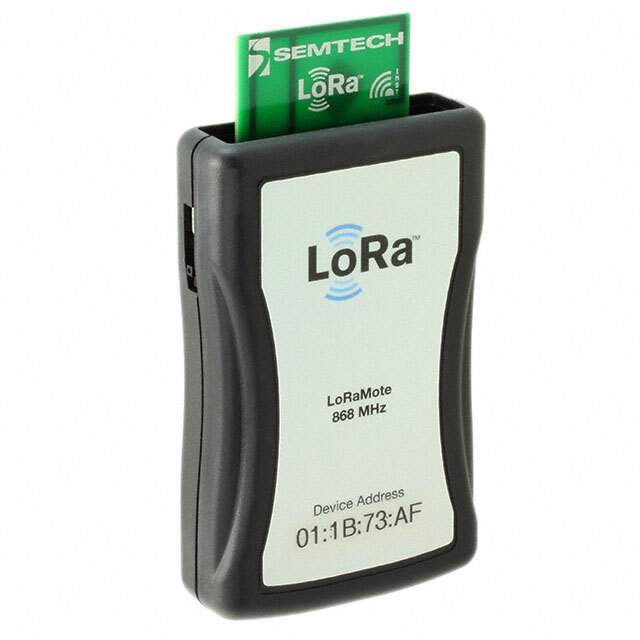

SX1272LM1BAP Real Image
Same model may have multiple batches, images only for reference.

SX1272LM1BAP

Part No SX1272LM1BAP
Manufacturer Semtech Corporation
Catalog RF Receiver, Transmitter, and Transceiver Finished Units
Description SX1272 868MHZ LORAMOTE KIT  /  RF Transceiver 860MHz ~ 1.02GHz 802.15.4 SPI 115.2kbps
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Receiver, Transmitter, and Transceiver Finished Units
Mfr Semtech Corporation
Package Bulk
Product Status Obsolete
Function Transceiver
Modulation or Protocol 802.15.4
Frequency 860MHz ~ 1.02GHz
Applications General Purpose
Interface SPI
Sensitivity -137dBm
Power - Output 20dBm
Data Rate (Max) 115.2kbps
Voltage - Supply 1.8V ~ 3.7V
Base Product Number SX127
Standard Package 1
RoHS Status Not applicable
MSL Level 1 (Unlimited)
ECCN 5A991B4
HTSUS 8473.30.1180
Win Source Part Number 1236083-SX1272LM1BAP
Ultra Librarian 3D Model Ultra Librarian SX1272LM1BAP CAD Model

Description

The 1236083-SX1272LM1BAP is a transceiver type finished unit designed for use in RF/IF and RFID category.

  • Frequency Range: 860MHz to 1.02GHz
  • Output Power: 20dBm
  • Sensitivity: -137dBm
  • Maximum Data Rate: 115.2kbps
  • Interface: SPI
  • Voltage Supply Range: 1.8V to 3.7V
  • RoHS: Non-compliant
  • ECCN: 5A991B4
