Same model may have multiple batches, images only for reference.

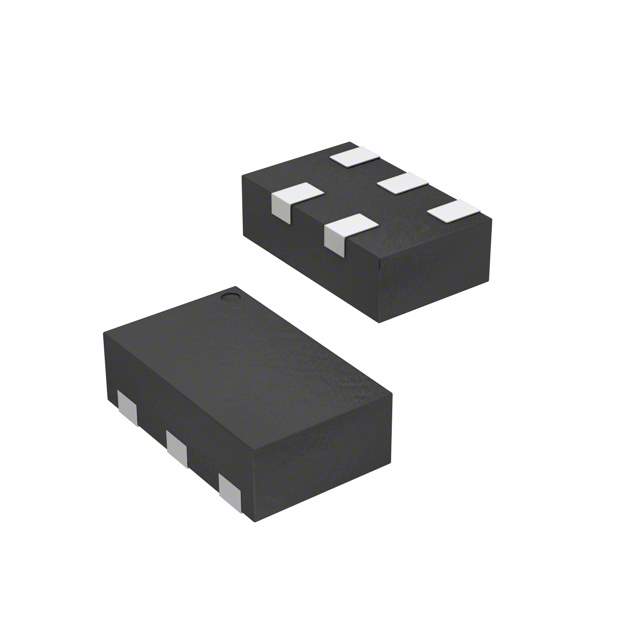

RCLAMP7524T.TNT Real Image
Same model may have multiple batches, images only for reference.

RCLAMP7524T.TNT

Part No RCLAMP7524T.TNT
Manufacturer Semtech Corporation
Catalog TVS - Diodes
Description TVS DIODE 5VWM
Datasheet
RCLAMP7524T.TNT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Semtech Corporation
Packaging Reel - TR
Status Active
Type Steering (Rail to Rail)
Unidirectional Channels 4
STAND-OFF Voltage (Vwm) 5V (Max)
Minimum Breakdown Voltage 6.5V
Max Clamping Voltage 15V
Peak Pulse Current(Ippm) 5A (8/20μs)
Power Dissipation - Pd 75W
Power Line Protection Yes
Applications General Purpose
Capacitance @ Frequency 500pF @ 1MHz
Temperature Range - Operating -55°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package SLP1308N5T
Win Source Part Number 027263-RCLAMP7524T.TNT
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 10k pcs
Ultra Librarian 3D Model Ultra Librarian RCLAMP7524T.TNT CAD Model

Description

The Semtech Corporation Steering (Rail to Rail) is a circuit protection device that comes in an SLP1308N5T case/package.

  • Maximum Stand-off Voltage: 5V
  • Minimum Breakdown Voltage: 6.5V
  • Peak Pulse Current: 5A (8/20μs)
  • Power Dissipation: 75W
  • Application: Commonly used in general-purpose applications
  • Popularity: Medium
  • Supply and Demand Status: Sufficient
