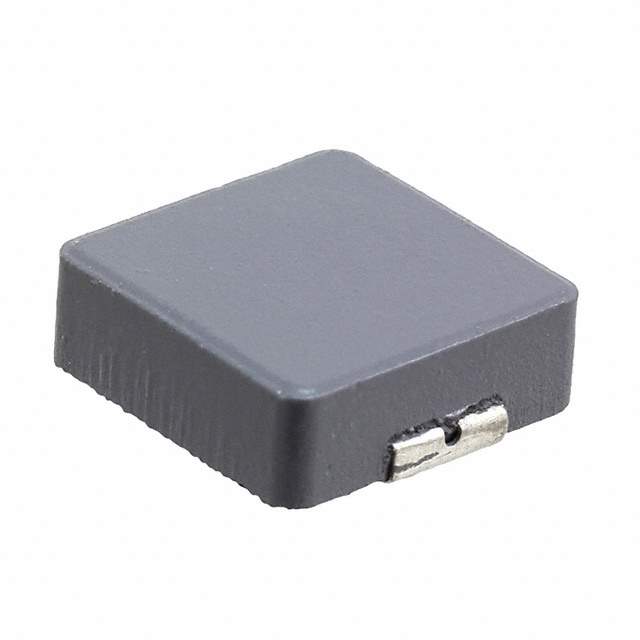

Same model may have multiple batches, images only for reference.

SRP1245A-3R3M

Name: SRP1245A-3R3M
Brand: Bourns Inc.
SKU: 676114
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	SRP1245A-3R3M
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Description	Shielded Power Inductors
Datasheet	SRP1245A-3R3M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Bourns Inc.
Series	SRP1245A
Packaging	Reel - TR
Type	Wirewound
Material - Core	Carbonyl Powder
Inductance	3.3μH
Tolerance	±20%
Current Rating	15A
Current - Saturation	32A
Shielding	Shielded
DC Resistance (DCR)	9.2 mOhm Max
Q @ Freq	20 @ 100kHz
Frequency - Self Resonant	22MHz
Ratings	AEC-Q200
Operating Temperature Range	-40°C ~ 150°C
Test Frequency	100kHz
Mounting	SMD
Package	Nonstandard
Size	0.531" L x 0.492" W (13.50mm x 12.50mm)
Height - Seated (Maximum)	0.197" (5.00mm)
Win Source Part Number	1258802-SRP1245A-3R3M
Manufacturer Homepage	www.bourns.com
Popularity	Medium
Supply and Demand Status	Limited
Family Name	SRP1245A
Introduction Date	April 03, 2014
ECCN	EAR99
Country of Origin	Taiwan
Ultra Librarian 3D Model	Ultra Librarian SRP1245A-3R3M CAD Model

Alternative Products

Description

The Bourns Inc. 1258802-SRP1245A-3R3M is a wirewound shielded inductor designed for use in various electronic applications.

Manufacturer: Bourns Inc.
Type: Wirewound Shielded Inductor
Current Rating: 15A
Inductance: 3.3μH
Tolerance: ±20%
Series: SRP1245A
AEC-Q200: Rated
Size: 0.531" L x 0.492" W (13.50mm x 12.50mm)
Mounting Technology: SMD
Material: Carbonyl powder
Maximum DC Resistance (DCR): 9.2 mOhm
Self-Resonant Frequency: 22MHz
Q Rating: 20 @ 100kHz
