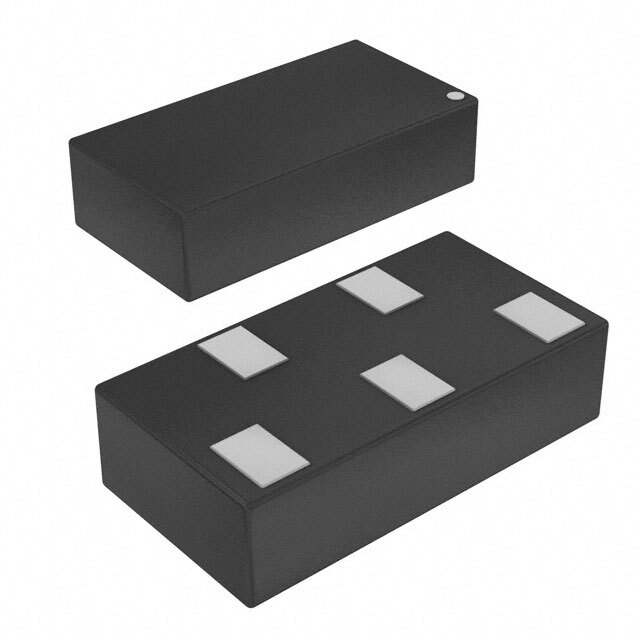

RCLAMP0564P.TNT Real Image
Same model may have multiple batches, images only for reference.

RCLAMP0564P.TNT

Part No RCLAMP0564P.TNT
Manufacturer Semtech Corporation
Catalog TVS - Diodes
Description TVS DIODE 5VWM 4VC SGP2010N5
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Semtech Corporation
Series RailClamp®
Package Tape & Reel
Product Status Active
Type Steering (Rail to Rail)
Unidirectional Channels 4
Voltage - Reverse Standoff (Typ) 5V (Max)
Voltage - Breakdown (Min) 6.5V
Voltage - Clamping (Max) @ Ipp 4V
Current - Peak Pulse (10/1000µs) 3A (8/20µs)
Power Line Protection Yes
Applications HDMI
Capacitance @ Frequency 0.17pF @ 1MHz
Temperature Range - Operating -40°C ~ 85°C (TJ)
Mounting Type Surface Mount
Package / Case 5-UFDFN
Supplier Device Package SGP2010N5
Base Product Number RCLAMP0564
Standard Package 10,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 849201-RCLAMP0564P.TNT
Ultra Librarian 3D Model Ultra Librarian RCLAMP0564P.TNT CAD Model

Description

The Transient Voltage Suppressor (TVS) Diode with the Win Source Part Number 849201-RCLAMP0564P.TNT is a steering type TVS diode designed for circuit protection in HDMI applications. It is part of the RailClamp® series, offering reliable protection against transient voltage spikes.

  • Package: Tape and Reel
  • Channels: Four Unidirectional
  • Reverse Standoff Voltage: 5V (maximum)
  • Manufacturer: Semtech Corporation
  • Product Status: Active
  • Power Line Protection Standard: Yes
  • Capacitance: 0.17pF @ 1MHz
  • Application: HDMI
