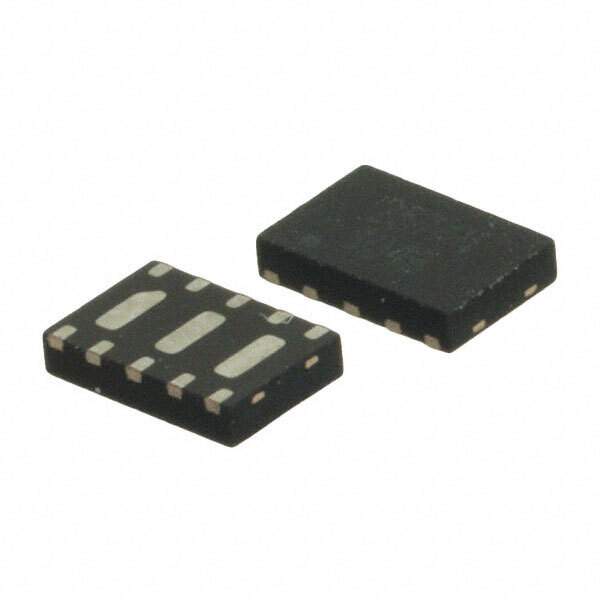

RCLAMP0534N.TCT

Name: RCLAMP0534N.TCT
Brand: Semtech Corporation
SKU: 508291
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	RCLAMP0534N.TCT
Manufacturer	Semtech Corporation
Catalog	TVS - Diodes
Description	TVS DIODE 5VWM 15VC
Datasheet	RCLAMP0534N.TCT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Manufacturer	Semtech Corporation
Packaging	Reel - TR
Status	Active
Type	Steering (Rail to Rail)
Unidirectional Channels	4
STAND-OFF Voltage (Vwm)	5V (Max)
Minimum Breakdown Voltage	6V
Max Clamping Voltage	15V
Peak Pulse Current(Ippm)	25A (8/20μs)
Power Dissipation - Pd	500W
Power Line Protection	Yes
Applications	General Purpose
Capacitance @ Frequency	3.5pF @ 1MHz
Temperature Range - Operating	-55°C to 125°C (TJ)
Mounting	SMD (SMT)
Case / Package	SLP3020N10
Win Source Part Number	1091636-RCLAMP0534N.TCT
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian RCLAMP0534N.TCT CAD Model

Alternative Products

Description

The RCLAMP0534N.TCT is a steering (rail to rail) type circuit protection device manufactured by Semtech Corporation.

Type: Steering (rail to rail)
Channels: 4 unidirectional
Application: General purpose
Capacitance: 3.5pF @ 1MHz
Power Dissipation: 500W
Stand-off Voltage: 5V (Max)
Breakdown Voltage: 6V (Min)
Clamping Voltage: 15V (Max)
Peak Pulse Current: 25A (8/20μs)
Mounting: SMD (SMT)
Temperature Range: -55°C to 125°C (TJ)
Supply and Demand Status: Balanced
