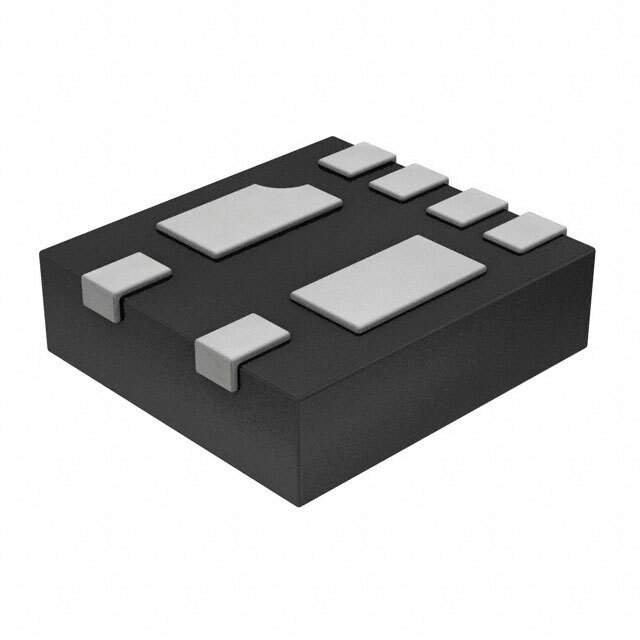

The PCLAMP1211P.TGT is a Transient Voltage Suppressor (TVS) diode array designed and manufactured by Semtech Corporation. It is specifically engineered to protect sensitive electronic components from electrostatic discharge (ESD), electrical fast transients (EFT), and surge events. This device is commonly used to safeguard data lines, I/O ports, and other vulnerable circuitry in a variety of applications.

Applications

• USB interfaces
• HDMI ports
• Ethernet interfaces
• Mobile phones and tablets
• Data lines and I/O ports

Features

• Low clamping voltage
• Fast response time
• ESD protection per IEC 61000-4-2, ±30kV contact, ±30kV air
• EFT protection per IEC 61000-4-4
• Surge protection per IEC 61000-4-5
• Small form factor package
• Low leakage current

Benefits

• Protects sensitive electronics from damaging voltage transients
• Improves system reliability and reduces downtime
• Minimizes the risk of component failure due to ESD or surge events
• Allows for compliance with industry standards for ESD and surge immunity
• Simple to implement and integrate into existing designs

Additional Details

The PCLAMP1211P.TGT features a typical clamping voltage of 14V when subjected to a transient current. It is available in a small form factor package such as a SOT-23 or similar, which saves valuable board space. The device is characterized by its very low leakage current, typically in the nanoampere range, which minimizes power consumption. This TVS diode array provides protection for one data line pair. It is suitable for high-speed data lines due to its fast response time. The part number specifies a 12V standoff voltage with enhanced transient protection capabilities. The device is RoHS compliant, ensuring it is free from hazardous substances. The PCLAMP1211P.TGT is widely employed in consumer electronics, telecommunications equipment, and industrial applications where robust ESD and surge protection are essential.
