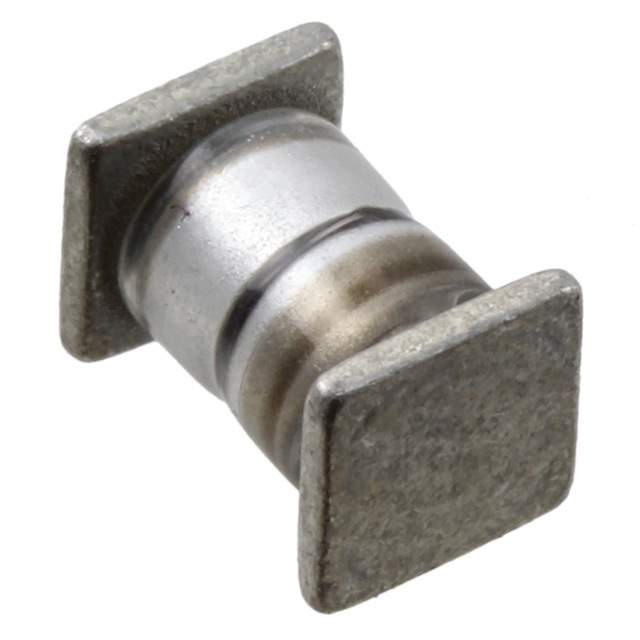

JANS1N5822US Real Image
Same model may have multiple batches, images only for reference.

JANS1N5822US

Part No JANS1N5822US
Manufacturer Semtech Corporation
Catalog Diodes, Rectifiers - Single
Description SCHOTTKY SM DIODE 40V 3A, /620 J  /  Diode Schottky 40 V 3A Surface Mount
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Semtech Corporation
Series MIL-PRF-19500/620
Package Bulk
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40 V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 500 mV @ 3 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 100 µA @ 40 V
Mounting SMD (SMT)
Package / Case SQ-MELF
Operating Temperature - Junction -65°C ~ 125°C
ECCN EAR99
HTSUS 8541.10.0080
Other Names 600-JANS1N5822US
Standard Package 1
Win Source Part Number 1185607-JANS1N5822US
Ultra Librarian 3D Model Ultra Librarian JANS1N5822US CAD Model

Description

The JANS1N5822US from Semtech Corporation is a Schottky type diode with a maximum reverse voltage of 40V and an average rectified current of 3A.

  • Maximum Reverse Voltage: 40V
  • Average Rectified Current: 3A
  • Voltage Forward @ 3A: 500mV
  • Reverse Leakage Current @ 40V: 100µA
  • Speed: < 500ns > 200mA (Io)
  • Package: Bulk
  • Standard Package: 1
  • Package/Case: SQ-MELF
  • Operating Temperature Range: -65°C to 125°C
