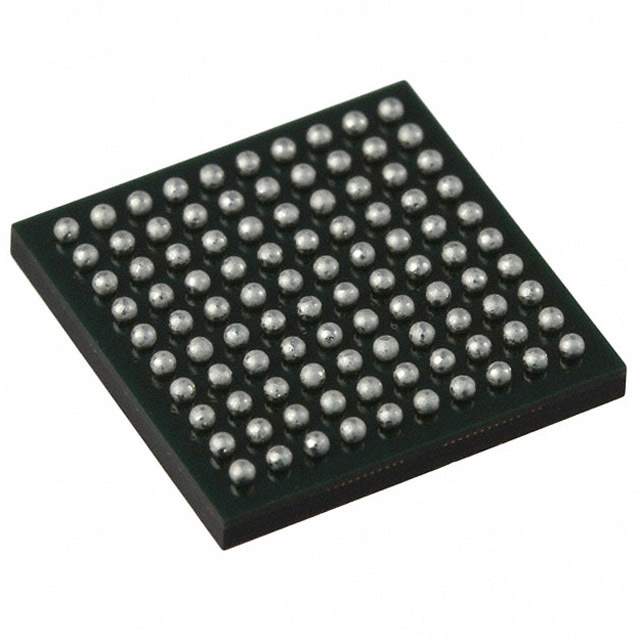

The GS2962-IBE3 is a multi-rate SDI cable equalizer designed by Semtech Corporation. It's designed to compensate for signal loss in coaxial cables used for transmitting serial digital video signals. This equalizer supports a wide range of data rates, making it suitable for various SDI standards including SD-SDI, HD-SDI, and 3G-SDI. It enables longer cable runs with improved signal integrity, crucial for broadcast and professional video applications.

Applications:

• Broadcast video routers and switchers
• Digital video recorders (DVRs) and servers
• Professional video cameras and camcorders
• Video distribution amplifiers
• Medical imaging equipment with SDI interfaces

Features:

• Supports SMPTE 424M (3G-SDI), SMPTE 292M (HD-SDI), and SMPTE 259M (SD-SDI) standards
• Automatic cable equalization for different cable types
• Data rates from 125 Mbps to 2.97 Gbps
• Low power consumption
• Output return loss better than 15 dB
• Adaptive equalization ensures optimal performance across varying cable lengths

Benefits:

• Extended cable reach for SDI signals, reducing the need for costly repeaters
• Improved signal quality and reduced jitter, leading to cleaner video signals
• Simplified system design and setup due to automatic equalization
• Lower power consumption compared to alternative solutions
• Increased system reliability and robustness

Additional Details:

The GS2962-IBE3 features automatic cable equalization, simplifying installation and ensuring optimal performance across various cable lengths and types. It supports a wide range of data rates from 125Mbps to 2.97Gbps, catering to SD-SDI, HD-SDI, and 3G-SDI standards. It is designed to operate with a single 3.3V power supply. The device provides excellent output return loss. The adaptive equalization mechanism automatically adjusts to the characteristics of the connected cable, providing optimal signal compensation. The GS2962 offers a compact form factor.
