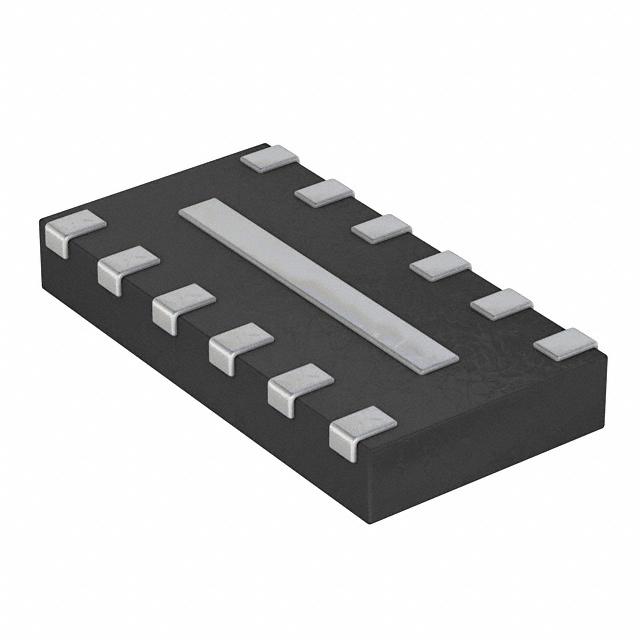

Same model may have multiple batches, images only for reference.
ECLAMP2456P.TCT Semtech Corporation
Same model may have multiple batches, images only for reference.

ECLAMP2456P.TCT

Part No ECLAMP2456P.TCT
Manufacturer Semtech Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(PI) 28NH/12PF ESD SMD
Datasheet
ECLAMP2456P.TCT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Semtech Corporation
Packaging Reel - TR
Status Active
Type Low Pass
Filter Order 5th
Technology LC (Pi)
Number of Channels 6
Center / Cutoff Frequency 155MHz (Cutoff)
Attenuation Value 40dB @ 800MHz to 2.7GHz
Resistance - Channel (Ohms) 33
Values L = 28nH, C = 12pF
ESD Protection Yes
Temperature Range - Operating -40°C to 85°C
Applications Data Lines for Mobile Devices
Mounting SMD (SMT)
Dimension 0.118" L x 0.063" W (3.00mm x 1.60mm)
Height 0.026" (0.65mm)
Win Source Part Number 015159-ECLAMP2456P.TCT
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ECLAMP2456P.TCT CAD Model

Description

ECLAMP2456P.TCT

Designed to offer optimal protection for electronic devices, the ECLAMP2456P.TCT is a trusted solution for preventing damage from electrical transients and spikes. This device is engineered for efficiency and reliability, meeting the demands of modern electronics.

  • Applications:
    • Consumer Electronics
    • Peripheral Interfaces
    • Automotive Electronics
  • Features and Benefits:
    • ESD Protection to IEC 61000-4-2 Standards
    • Low Leakage Current
    • Wide Operation Temperature Range

Additional Details: The ECLAMP2456P.TCT’s robust protection capabilities and versatile application fitting make it an excellent choice for engineers looking for reliable transient voltage suppression.
