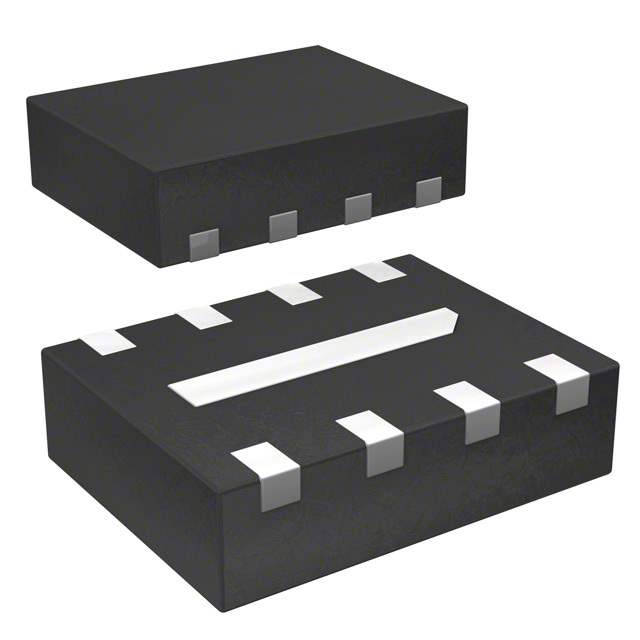

ECLAMP2374P.TCT

Part No ECLAMP2374P.TCT
Manufacturer Semtech Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC(PI) 100 OHM/11PF SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Semtech Corporation
Packaging Reel - TR
Status Active
Type Low Pass
Filter Order 2nd
Technology RC (Pi)
Number of Channels 4
Attenuation Value 30dB @ 1.8GHz to 2.5GHz
Resistance - Channel (Ohms) 100
Values R = 100 Ohms, C = 11pF
ESD Protection Yes
Temperature Range - Operating -40°C to 85°C
Applications Data Lines for Mobile Devices
Mounting SMD (SMT)
Dimension 0.083" L x 0.063" W (2.10mm x 1.60mm)
Height 0.026" (0.65mm)
Win Source Part Number 015150-ECLAMP2374P.TCT
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian ECLAMP2374P.TCT CAD Model

Description

Product Overview

The ECLAMP2374P.TCT is crafted to protect electronic components from voltage spikes and limiting excess current, making it vital for maintaining system stability.

Features and Benefits

  • Efficient Voltage Suppression: Neutralizes voltage spikes to protect sensitive components.
  • Space-Saving Design: Suitable for compact device configurations.
  • Reliability Under Load: Ensures consistent performance under high operational demands.
  • Temperature Stability: Consistent performance despite temperature variations.

Applications

  • Portable Electronics
  • Network Components
  • Security Systems
  • Aerospace Equipment

The ECLAMP2374P.TCT is essential for engineers looking for reliable, high-performance electronic protection in various fields.
