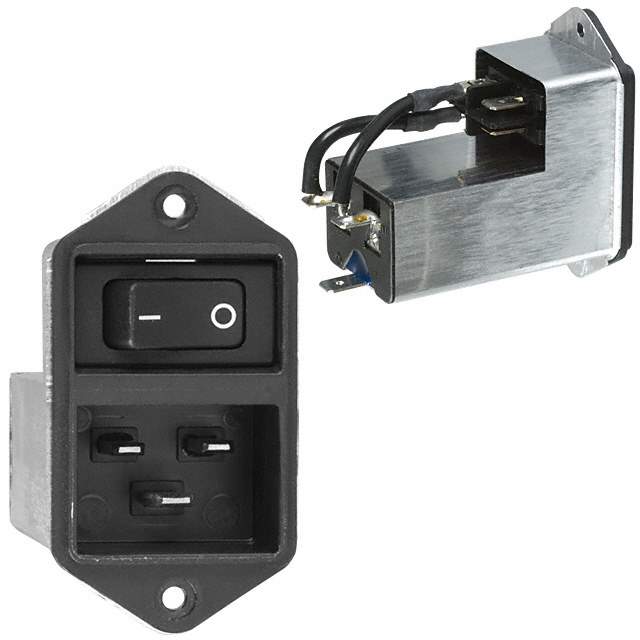

EC12.1101.001 Real Image
Same model may have multiple batches, images only for reference.

EC12.1101.001

Part No EC12.1101.001
Manufacturer Schurter Inc.
Catalog Barrel - Power Connectors
Description PWR ENT MOD RCPT IEC320-C20 PNL / Power Entry Connector Receptacle, Male Blades - Module IEC 320-C20 Panel Mount, Flange
Datasheet
EC12.1101.001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Power Entry Connectors - Inlets, Outlets, Modules
Mfr SCHURTER Inc.
Series EC12
Package Bulk
Connector Style IEC 320-C20
Connector Type Receptacle, Male Blades - Module
Current - UL 20A
Voltage - UL 125VAC
Filter Type Filtered (EMI, RFI) - Commercial
Accomodates a Fuse No
Number of Positions 3
Mounting Type Panel Mount, Flange
Termination Quick Connect - 0.250" (6.3mm)
Switch Features Switch On-Off
Features Shielded
Panel Cutout Dimensions Rectangular - 33.90mm x 48.00mm
Material Flammability Rating UL94 V-0
Ingress Protection IP40
Approval Agency CQC, cURus, ENEC
Base Product Number EC12.1101
MSL Level Vendor Undefined
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.30.8000
Other Names EC12.1101.001-ND,EC121101001,486-1100
Standard Package 20
Win Source Part Number 1004238-EC12.1101.001
Ultra Librarian 3D Model Ultra Librarian EC12.1101.001 CAD Model

Description

The EC12.1101.001 is a power entry connector in the category of Connectors, Interconnects.

  • Manufacturer: SCHURTER Inc.
  • Series: EC12
  • Shielded: Yes
  • Connector Type: Receptacle with Male Blades
  • Termination: Quick Connect - 0.250” (6.3mm)
  • Connector Style: IEC 320-C20
  • Ingress Protection: IP40
  • Material Flammability Rating: UL94 V-0
  • Mounting Type: Panel Mount, Flange
  • Panel Cutout Dimensions: 33.90mm x 48.00mm
