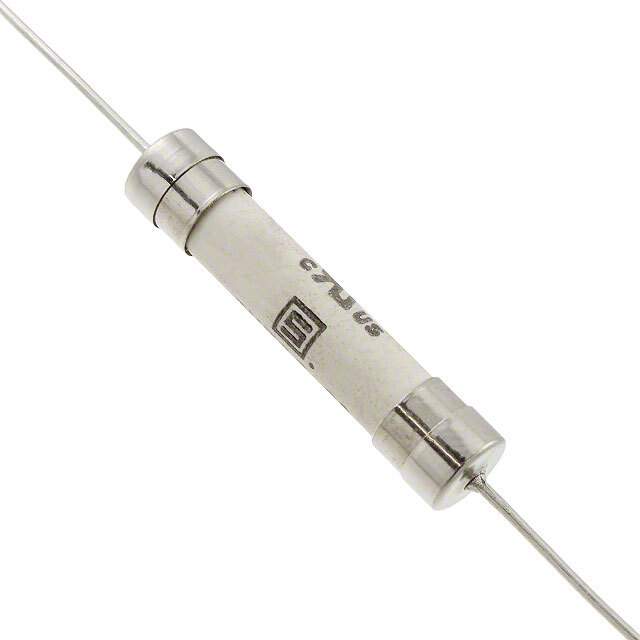

Part No 8020.5021.PT
Manufacturer Schurter Inc.
Catalog Fuses
Description SHT 6.3X32 FUSE 10A T PIGTAIL / 10 A 500 V AC 400 V DC Fuse Cartridge, Ceramic Through Hole 3AB, 3AG, 1/4" x 1-1/4" (Axial)
Datasheet
8020.5021.PT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr SCHURTER Inc.
Series SHT 6.3X32
Mounting Type Through Hole
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 10 A
Voltage Rating - AC 500 V
Voltage Rating - DC 400 V
Response Time Slow Blow
Package / Case 3AB, 3AG, 1/4" x 1-1/4" (Axial)
Breaking Capacity @ Rated Voltage 1.5kA AC, 1kA DC
Melting I2t 700
Approval Agency cURus
Temperature Range - Operating -40°C ~ 85°C
Dimension 0.270" Dia x 1.291" L (6.85mm x 32.80mm)
Base Product Number 8020.5021
MSL Level Vendor Undefined
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Other Names 486-4913
Standard Package 1,000
Win Source Part Number 966696-8020.5021.PT
Ultra Librarian 3D Model Ultra Librarian 8020.5021.PT CAD Model

Description

The SCHURTER Inc. 966696-8020.5021.PT is a slow blow, ceramic cartridge fuse with a voltage rating of 500V AC and 400V DC.

  • Fuse Type: 3AB, 3AG, 1/4" x 1-1/4" (axial)
  • Breaking Capacity: 1.5kA AC and 1kA DC
  • Current Rating: 10A
  • Melting I2t: 700
  • Package: Through hole mounted
  • Dimension: 0.270" Dia x 1.291" L (6.85mm x 32.80mm)
  • Temperature Range: -40°C to 85°C
  • REACH: Unaffected
  • Approvals: cURus
  • HTSUS: 8536.10.0040
