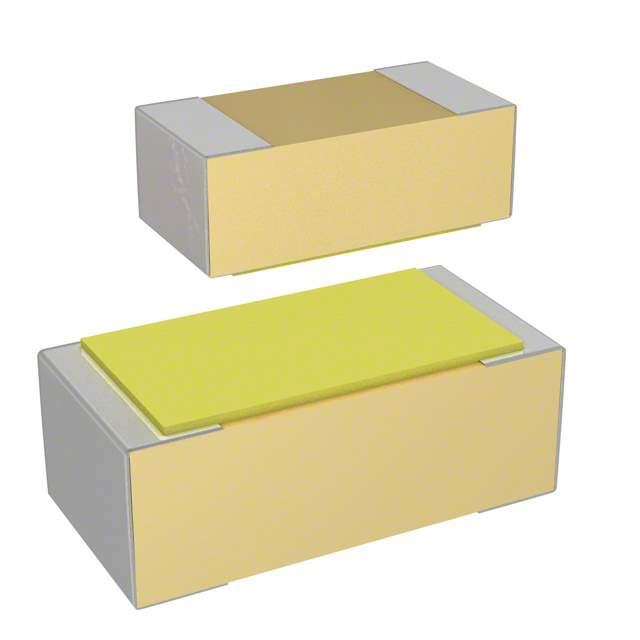

Same model may have multiple batches, images only for reference.

3412.0115.22

Name: 3412.0115.22
Brand: Schurter Inc.
SKU: 1132073
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	3412.0115.22
Manufacturer	Schurter Inc.
Catalog	Fuses
Description	FUSE BRD MNT 1A 32VAC 63VDC 0603 / 1 A 32 V AC 63 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 0603 (1608 Metric)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>Fuses
Mfr	SCHURTER Inc.
Series	USF 0603
Package	Tape & Reel
Mounting	SMD (SMT)
Fuse Type	Board Mount (Cartridge Style Excluded)
Current Rating (Amps)	1 A
Voltage Rating - AC	32 V
Voltage Rating - DC	63 V
Response Time	Fast Blow
Package / Case	0603 (1608 Metric)
Breaking Capacity @ Rated Voltage	50A
Melting I2t	0.06
Approval Agency	cURus
Temperature Range - Operating	-55°C ~ 90°C
Dimension	0.063" L x 0.031" W x 0.024" H (1.60mm x 0.80mm x 0.60mm)
DC Cold Resistance	0.075 Ohms
Base Product Number	3412.0115
MSL Level	Vendor Undefined
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.10.0040
Other Names	486-1666-6,3412011522,3412.0115.22-ND,486-1666-1,486-1666-2
Standard Package	1,000
Win Source Part Number	1132073-3412.0115.22
Ultra Librarian 3D Model	Ultra Librarian 3412.0115.22 CAD Model

Alternative Products

Description

The 3412.0115.22 is a circuit protection fuse from SCHURTER Inc.

Series: USF 0603
Packaging: Tape and reel
Fuse Type: Board mount (cartridge style excluded)
Voltage Rating (AC): 32V (AC)
Voltage Rating (DC): 63V (DC)
Response Time: Fast blow
Breaking Capacity: 50A @ rated voltage
Melting I2t: 0.06
DC Cold Resistance: 0.075 Ohms
