Same model may have multiple batches, images only for reference.

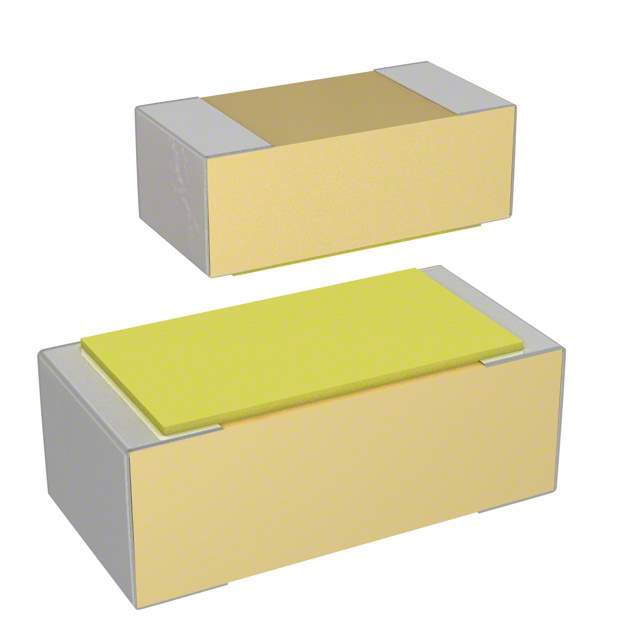

3412.0113.24 Real Image
Same model may have multiple batches, images only for reference.

3412.0113.24

Part No 3412.0113.24
Manufacturer Schurter Inc.
Catalog Fuses
Description FUSE BOARD MNT 500MA 32VAC 63VDC / 500 mA 32 V AC 63 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 0603 (1608 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr SCHURTER Inc.
Series USF 0603
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 500 mA
Voltage Rating - AC 32 V
Voltage Rating - DC 63 V
Response Time Fast Blow
Package / Case 0603 (1608 Metric)
Breaking Capacity @ Rated Voltage 50A
Melting I2t 0.02
Approval Agency cURus
Temperature Range - Operating -55°C ~ 90°C
Dimension 0.063" L x 0.031" W x 0.024" H (1.60mm x 0.80mm x 0.60mm)
DC Cold Resistance 0.157 Ohms
Base Product Number 3412.0113
MSL Level Vendor Undefined
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Other Names 486-4584-1,486-4584-2,3412.0113.24-ND,486-4584-6
Standard Package 5,000
Win Source Part Number 958484-3412.0113.24
Ultra Librarian 3D Model Ultra Librarian 3412.0113.24 CAD Model

Description

The 958484-3412.0113.24 is a Fuse from SCHURTER Inc.

  • Category: Circuit Protection
  • Current Rating: 500 mA
  • Fuse Type: Fast-Blow
  • Voltage Rating (AC): 32 V AC
  • Voltage Rating (DC): 63 V DC
  • Breaking Capacity: 50A
  • Melting I2t: 0.02
  • DC Cold Resistance: 0.157 Ohms
  • Package: Tape & Reel
  • Standard Package: 5,000 units
  • Package/Case: 0603 (1608 Metric)
  • Mounting Technology: SMD (SMT)
  • HTSUS Code: 8536.10.0040
  • Manufacturer: SCHURTER Inc.
