Same model may have multiple batches, images only for reference.

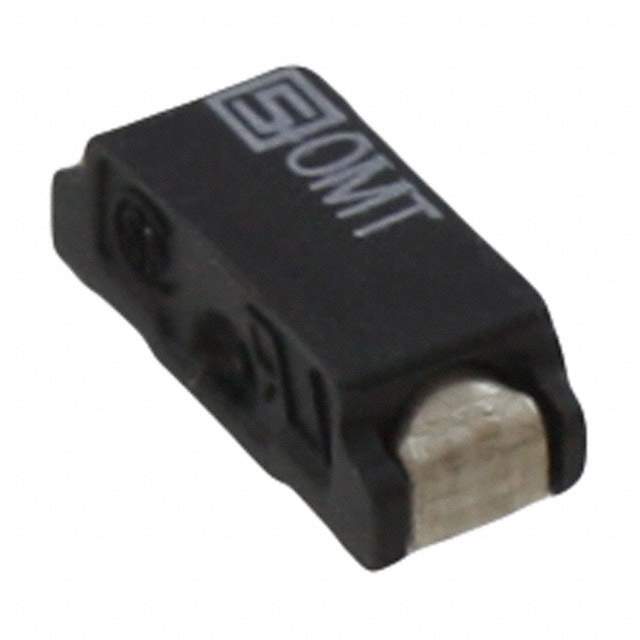

3404.0117.11 Real Image
Same model may have multiple batches, images only for reference.

3404.0117.11

Part No 3404.0117.11
Manufacturer Schurter Inc.
Catalog Fuses
Description FUSE BRD MNT 2.5A 125VAC/VDC SMD / 2.5 A 125 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, J-Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr SCHURTER Inc.
Series OMT 125
Package Bulk
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 2.5 A
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Response Time Slow Blow
Package / Case 2-SMD, J-Lead
Breaking Capacity @ Rated Voltage 100A
Melting I2t 5.6
Approval Agency cULus
Temperature Range - Operating -40°C ~ 85°C
Dimension 0.291" L x 0.122" W x 0.102" H (7.40mm x 3.10mm x 2.60mm)
Base Product Number 3404.0117
MSL Level Vendor Undefined
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Other Names 3404.0117.11-ND,486-3613
Standard Package 100
Win Source Part Number 993500-3404.0117.11
Ultra Librarian 3D Model Ultra Librarian 3404.0117.11 CAD Model

Description

The SCHURTER Inc. 3404.0117.11 is a board mount fuse with a voltage rating of 125V AC/DC.

  • Manufacturer: SCHURTER Inc.
  • Product Name: 3404.0117.11
  • Voltage Rating: 125V AC/DC
  • Current Rating: 2.5A
  • Breaking Capacity: 100A
  • Response Time: Slow Blow
  • Standard Package: 100
  • Dimension: 0.291" L x 0.122" W x 0.102" H (7.40mm x 3.10mm x 2.60mm)
