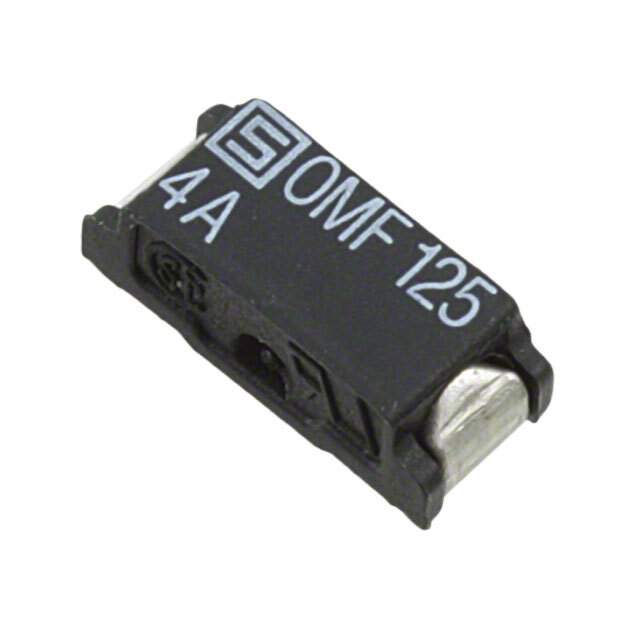

3404.0012.11 Real Image
Same model may have multiple batches, images only for reference.

3404.0012.11

Part No 3404.0012.11
Manufacturer Schurter Inc.
Catalog Fuses
Description FUSE BOARD MNT 2A 125VAC/VDC SMD / 2 A 125 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, J-Lead
Datasheet
3404.0012.11 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr SCHURTER Inc.
Series OMF 125
Package Bulk
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 2 A
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Response Time Fast Blow
Package / Case 2-SMD, J-Lead
Breaking Capacity @ Rated Voltage 100A
Melting I2t 0.44
Approval Agency cURus
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.291" L x 0.122" W x 0.102" H (7.40mm x 3.10mm x 2.60mm)
Base Product Number 3404.0012
MSL Level Vendor Undefined
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Other Names 486-2081,3404.0012.11-ND,3404001211
Standard Package 100
Win Source Part Number 973053-3404.0012.11
Ultra Librarian 3D Model Ultra Librarian 3404.0012.11 CAD Model

Description

The SCHURTER Inc. OMF 125 3404.0012.11 is a board mount (cartridge style excluded) fuse with a voltage rating of 125 V AC/DC.

  • Manufacturer: SCHURTER Inc.
  • Product Name: OMF 125 3404.0012.11
  • Fuse Type: Board mount (cartridge style excluded)
  • Voltage Rating: 125 V AC/DC
  • Response Time: Fast Blow
  • Breaking Capacity: 100A @ rated voltage
  • Melting I2t: 0.44
  • Package/Case: 2-SMD, J-Lead
  • ECCN: EAR99
  • Current Rating: 2 A
  • REACH: Unaffected
  • HTSUS: 8536.10.0040
  • Quantity per package: 100
