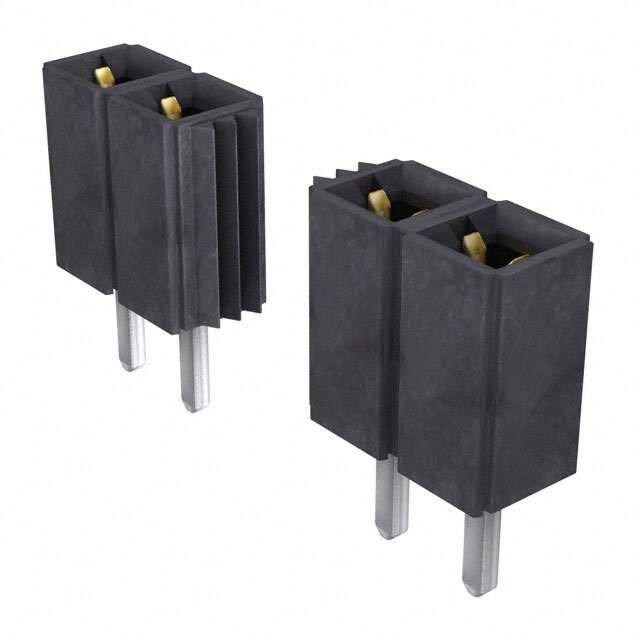

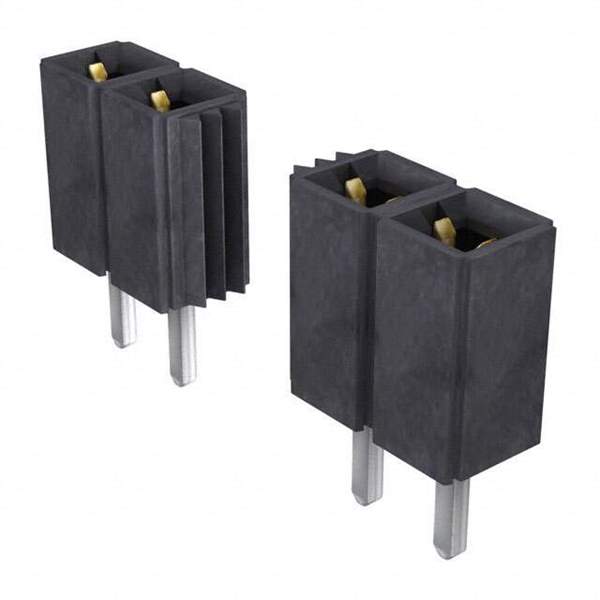

Same model may have multiple batches, images only for reference.

SLW-112-01-S-S

Name: SLW-112-01-S-S
Brand: Samtec Inc.
SKU: 1292659
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SLW-112-01-S-S
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SLW-112-01-S-S Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SLW
Package	Bulk
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board
Number of Positions	12
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	1
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.180" (4.57mm)
Contact Length - Post	0.115" (2.92mm)
Temperature Range - Operating	-55°C ~ 125°C
Contact Finish - Post	Tin
Mated Stacking Heights	6.09mm
Insulation Material	Polyester, Glass Filled
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	SLW-112
Other Names	SAM1091-12
Standard Package	1
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1292659-SLW-112-01-S-S
Ultra Librarian 3D Model	Ultra Librarian SLW-112-01-S-S CAD Model

Alternative Products

Description

The SLW series from Samtec Inc. offers a high-quality rectangular connector solution with a receptacle connector type and forked contact type.

Positions Loaded: 12
Row(s): 1
Pitch Mating: 0.100" (2.54mm)
Contact Material: Phosphor Bronze
Contact Plating: Gold
Contact Finish Thickness (Mating): 30.0μin (0.76μm)
Post Contact Finish: Tin-Plated
Mounting: Through-Hole
Insulation Material: Polyester, Glass-Filled
Temperature Range: -55°C to 125°C
REACH: Unaffected
Package: Bulk
Mated Stacking Heights: 6.09mm
