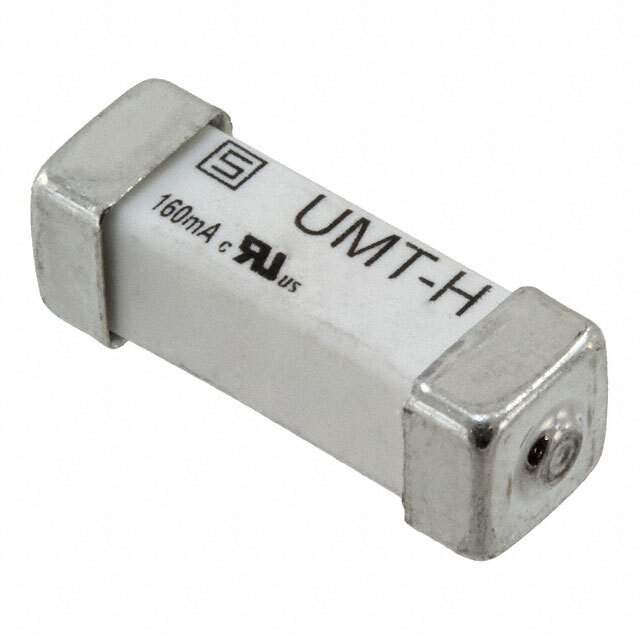

Same model may have multiple batches, images only for reference.

3403.0277.23

Name: 3403.0277.23
Brand: Schurter Inc.
SKU: 1229109
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	3403.0277.23
Manufacturer	Schurter Inc.
Catalog	Fuses
Description	FUSE 2A 277AC/250DC T-LAG SMD / 2 A 277 V AC 250 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, Square End Block
Datasheet	3403.0277.23 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>Fuses
Mfr	SCHURTER Inc.
Series	UMT-H
Package	Tape & Reel
Mounting	SMD (SMT)
Fuse Type	Board Mount (Cartridge Style Excluded)
Current Rating (Amps)	2 A
Voltage Rating - AC	277 V
Voltage Rating - DC	250 V
Response Time	Slow Blow
Package / Case	2-SMD, Square End Block
Breaking Capacity @ Rated Voltage	1.5kA
Melting I2t	11.8
Approval Agency	CQC, cURus, VDE
Temperature Range - Operating	-55°C ~ 125°C
Dimension	0.606" L x 0.211" W x 0.211" H (15.40mm x 5.35mm x 5.35mm)
Base Product Number	3403.0277
MSL Level	Vendor Undefined
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.10.0040
Other Names	486-3069-2,486-3069-6,2266-3403.0277.23,486-3069-1
Standard Package	1,500
Win Source Part Number	1229109-3403.0277.23
Ultra Librarian 3D Model	Ultra Librarian 3403.0277.23 CAD Model

Alternative Products

Description

The UMT-H series fuse from Schurter Inc. comes with a slow blow response time and a breaking capacity of 1.5kA @ rated voltage.

Response Time: Slow Blow
Breaking Capacity: 1.5kA @ Rated Voltage
Voltage Rating (AC): 277V
Voltage Rating (DC): 250V
Package: Tape & Reel (TR)
Package/Case: 2-SMD, Square End Block
Mounting Type: SMD (SMT)
Temperature Range: -55°C to 125°C
Dimension: 0.606" L x 0.211" W x 0.211" H (15.40mm x 5.35mm x 5.35mm)
MSL Level: Vendor Undefined
REACH: Affected
Current Rating: 2A
HTSUS: 8536.10.0040
Base Product Number: 3403.0277
Approvals: CQC, cURus, VDE
