Same model may have multiple batches, images only for reference.

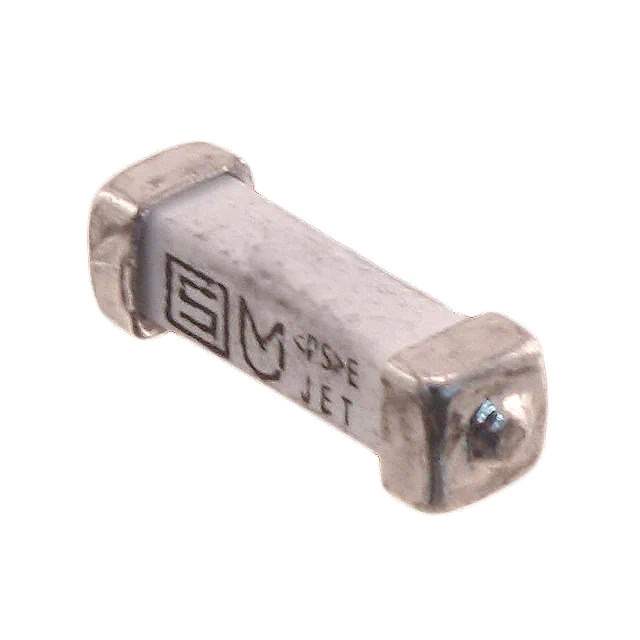

3403.0156.24 Real Image
Same model may have multiple batches, images only for reference.

3403.0156.24

Part No 3403.0156.24
Manufacturer Schurter Inc.
Catalog Fuses
Description FUSE BRD MNT 100MA 250VAC 125VDC
Datasheet
3403.0156.24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr SCHURTER Inc.
Series UMT 250
Package Tape & Reel
Product Status Active
Mounting Type Surface Mount
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 100 mA
Voltage Rating - AC 250 V
Voltage Rating - DC 125 V
Response Time Slow Blow
Package / Case 2-SMD, Square End Block
Breaking Capacity @ Rated Voltage 200A AC, 35A DC
Melting I2t 0.04
Approval Agency CQC, cURus, KC, VDE
Temperature Range - Operating -55°C ~ 125°C
Size / Dimension 0.398" L x 0.118" W x 0.118" H (10.10mm x 3.00mm x 3.00mm)
Base Product Number 3403.0156
Standard Package 2,000 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 855756-3403.0156.24
Ultra Librarian 3D Model Ultra Librarian 3403.0156.24 CAD Model

Description

The UMT 250 series circuit protection fuse is a reliable and efficient solution for protecting electronic components.

  • Voltage Rating: 250V AC / 125V DC
  • Response Time: Slow Blow
  • Breaking Capacity: 200A AC / 35A DC @ rated voltage
  • Size: 0.398" L x 0.118" W x 0.118" H
  • Mounting Type: Surface Mount
  • Package: 2,000 pcs
  • Operating Temperature: -55°C to 125°C
  • Approvals: CQC, cURus, KC, and VDE
