Same model may have multiple batches, images only for reference.

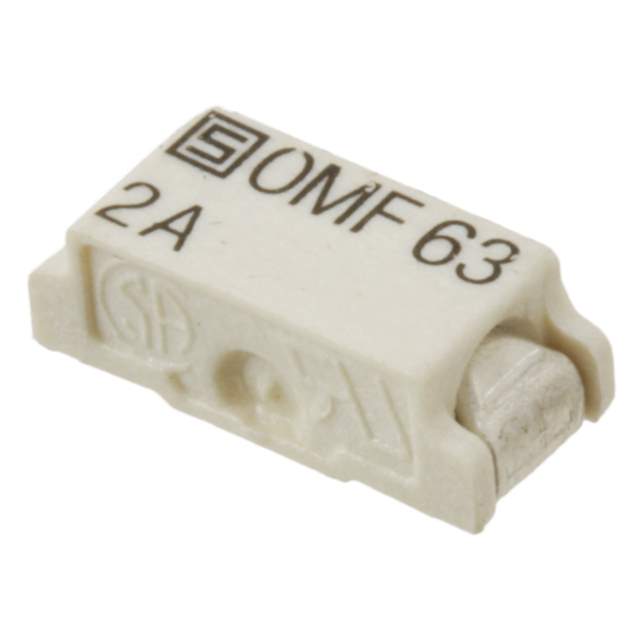

3402.0040.24 Real Image
Same model may have multiple batches, images only for reference.

3402.0040.24

Part No 3402.0040.24
Manufacturer Schurter Inc.
Catalog Fuses
Description FUSE BRD MNT 10A 63VAC/VDC 2SMD
Datasheet
3402.0040.24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Schurter Inc.
Packaging Reel - TR
Status Active
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 10A
Voltage Rating - AC 63V
Voltage Rating - DC 63V
Response Time Fast
Mounting SMD (SMT)
Breaking Capacity @ Rated Voltage 50A
Nominal Melting - I2t 54
Approvals cURus
Temperature Range - Operating -55°C to 125°C
Dimension 0.291" L x 0.122" W x 0.102" H (7.40mm x 3.10mm x 2.60mm)
Win Source Part Number 1021839-3402.0040.24
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 3402.0040.24 CAD Model

Description

The 3402.0040.24 is a surface mount fuse manufactured by Schurter Inc.

  • Current Rating: 10A
  • Voltage Rating: 63V AC and DC
  • Response Time: Fast
  • Breaking Capacity: 50A @ rated voltage
  • Approvals: cURus
  • Suitable for Use in: Various applications including power supplies, lighting, and audio equipment
  • Supply and Demand Status: Sufficient
