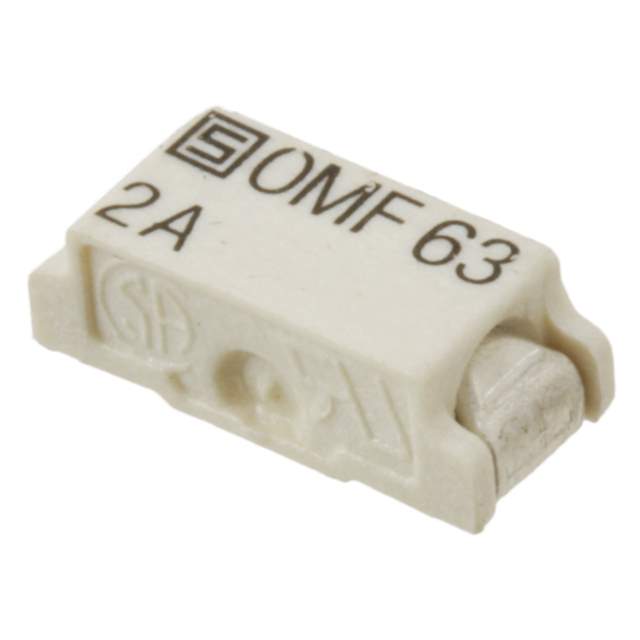

3402.0019.22 Real Image
Same model may have multiple batches, images only for reference.

3402.0019.22

Part No 3402.0019.22
Manufacturer Schurter Inc.
Catalog Fuses
Description FUSE BOARD MNT 7A 63VAC/VDC 2SMD / Fuse Chip Fast Acting 7A 63V SMD Solder Pad 7.4 X 3.1mm Thermoplastic T/R CSA/UL
Datasheet
3402.0019.22 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Schurter Inc.
Series OMF 63
Packaging Reel package
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 7A
Voltage Rating - AC 63V
Voltage Rating - DC 63V
Response Time Fast
Package 2-SMD, J-Lead
Mounting SMD
Breaking Capacity @ Rated Voltage 50A
Melting I2t 16
Approvals cURus
Operating Temperature Range -55°C ~ 125°C
Dimension 0.291" L x 0.122" W x 0.102" H (7.40mm x 3.10mm x 2.60mm)
Win Source Part Number 769614-3402.0019.22
Popularity Medium
Supply and Demand Status Limited
Family Name 3402
Introduction Date July 18, 2001
ECCN EAR99
Country of Origin Switzerland
Halogen Free Compliant
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian 3402.0019.22 CAD Model

Description

The OMF 63 series fuse from Schurter Inc. is a board mount fuse with a current rating of 7A and a voltage rating of 63VAC and 63VDC.

  • Current Rating: 7A
  • Voltage Rating: 63VAC, 63VDC
  • Breaking Capacity: 50A @ rated voltage
  • Melting I2t: 16
  • Package / Case: 2-SMD, J-Lead
  • Compliance: ECCN EAR99
  • Approvals: cURus
  • Mounting Type: SMD
  • Dimensions: 0.291" L x 0.122" W x 0.102" H (7.40mm x 3.10mm x 2.60mm)
