Same model may have multiple batches, images only for reference.

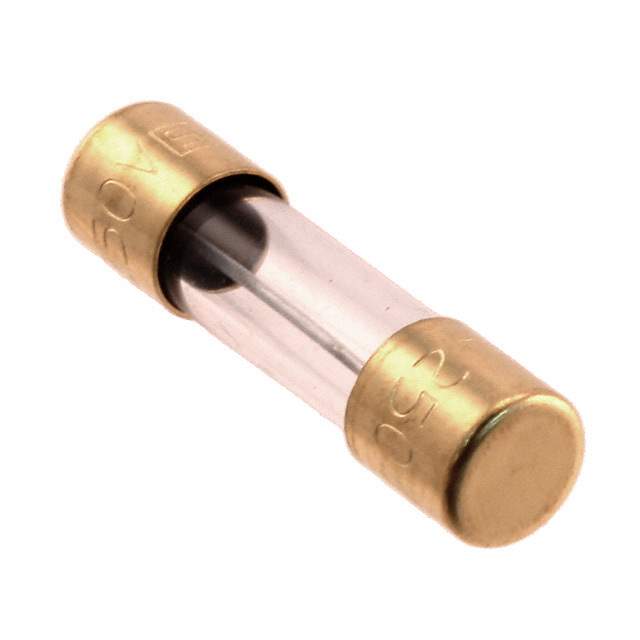

0034.5617.11 Real Image
Same model may have multiple batches, images only for reference.

0034.5617.11

Part No 0034.5617.11
Manufacturer Schurter Inc.
Catalog Fuses
Description FUSE GLASS 1A 250VAC 5X20MM / 1 A 250 V AC DC Fuse Cartridge, Glass Holder 5mm x 20mm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr SCHURTER Inc.
Series SMD-FST
Package Bulk
Mounting Type Holder
Fuse Type Cartridge, Glass
Current Rating (Amps) 1 A
Voltage Rating - AC 250 V
Response Time Slow Blow
Package / Case 5mm x 20mm
Breaking Capacity @ Rated Voltage 35A
Melting I2t 3.3
Approval Agency cURus, VDE
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
Base Product Number 0034.5617
MSL Level Vendor Undefined
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.10.0020
Other Names 486-1915,0034.5617.11-ND,34561711
Standard Package 100
Win Source Part Number 1097709-0034.5617.11
Ultra Librarian 3D Model Ultra Librarian 0034.5617.11 CAD Model

Description

This electronic component, with Win Source Part Number 1097709-0034.5617.11, is a fuse type cartridge manufactured by SCHURTER Inc.

  • Response Time: Slow blow
  • Breaking Capacity: 35A @ rated voltage
  • Melting I2t: 3.3
  • Standard Package: 100 units
  • Mounting: Holder
  • Package/Case Size: 5mm x 20mm
  • Operating Temperature Range: -55°C to 125°C
  • Alternative Parts: MP006247, 3403.0275.23, SS-5H-1.25A-AP, SS-5H-1.25A-APH, RST 125, 38311250410, and 0001.2505
  • REACH Affected: Yes
  • ECCN: EAR99
  • Approvals: cURus and VDE
