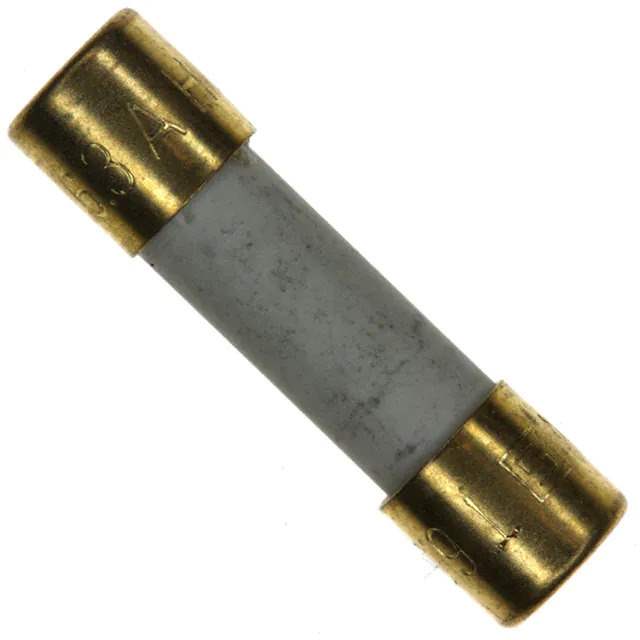

0001.2714.22 Real Image
Same model may have multiple batches, images only for reference.

0001.2714.22

Part No 0001.2714.22
Manufacturer Schurter Inc.
Catalog Fuses
Description FUSE CERM 10A 250VAC 150VDC 5X20
Datasheet
0001.2714.22 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr SCHURTER Inc.
Series SMD-SPT
Package Tape & Reel
Product Status Active
Mounting Type Requires Holder
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 10 A
Voltage Rating - AC 250 V
Voltage Rating - DC 150 V
Response Time Slow Blow
Package / Case 5mm x 20mm
Breaking Capacity @ Rated Voltage 1kA AC, 1.5kA DC
Melting I2t 400
Approval Agency cURus, VDE
Temperature Range - Operating -55°C ~ 125°C
Size / Dimension 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
Base Product Number 0001.2714
Standard Package 1,000 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 853095-0001.2714.22
Ultra Librarian 3D Model Ultra Librarian 0001.2714.22 CAD Model

Description

The 853095-0001.2714.22 is a cartridge ceramic fuse from the SMD-SPT series by SCHURTER Inc.

  • Series: SMD-SPT
  • Application: circuit protection
  • Voltage Rating (AC): 250V AC
  • Voltage Rating (DC): 150V DC
  • Response Time: slow blow
  • Breaking Capacity (AC): 1kA AC @ rated voltage
  • Breaking Capacity (DC): 1.5kA DC @ rated voltage
  • Size: 0.205" diameter, 0.787" length
  • Mounting: requires a holder
  • Operating Temperature Range: -55°C to 125°C
  • Status: active
  • Approvals: cURus and VDE
