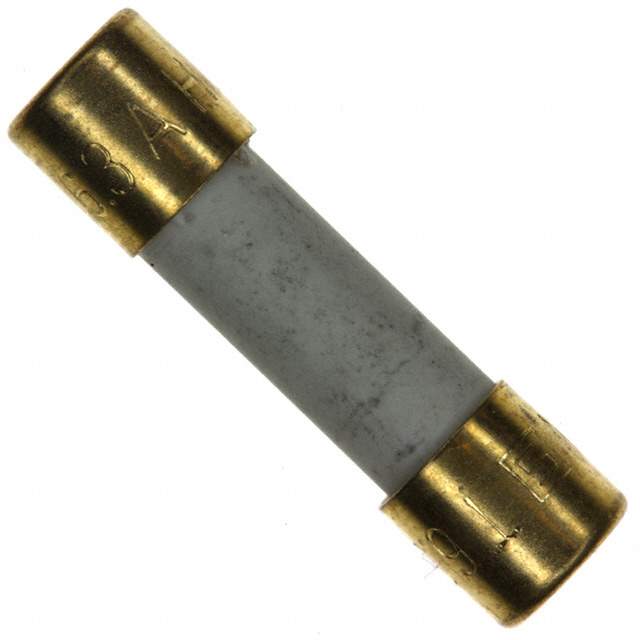

0001.2709.22 Real Image
Same model may have multiple batches, images only for reference.

0001.2709.22

Part No 0001.2709.22
Manufacturer Schurter Inc.
Catalog Fuses
Description FUSE CERAMIC 3.15A 250VAC 300VDC / Miniature Fuse, 5 x 20 mm, Time-Lag T, H, 250 VAC, UL: 115 V - 300 VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Schurter Inc.
Packaging Reel
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 3.15A
Voltage Rating - AC 250V
Voltage Rating - DC 300V
Response Time Slow Blow
Manufacturer Package 5mm x 20mm
Mounting Style Holder
Breaking Capacity at Rated Voltage 1.5kA
Melting I2t 33.7
Approvals CCC, cURus, VDE
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
Manufacturer Pack Quantity 1,000
MSL Level Vendor Undefined
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 804171-0001.2709.22
Ultra Librarian 3D Model Ultra Librarian 0001.2709.22 CAD Model

Description

Schurter Inc. produces this electronic component with the Win Source Part Number 804171-0001.2709.22.

  • Fuse Type: Cartridge, Ceramic
  • Voltage Rating: 250V AC, 300V DC
  • Response Time: Slow Blow
  • Melting I2t: 33.7
  • Approvals: CCC, cURus, VDE
  • Temperature Range: -55°C to 125°C
  • Dimension: 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
  • Manufacturer Package: 5mm x 20mm
  • Supply and Demand Status: Balanced
  • Manufacturer Pack Quantity: 1,000
  • MSL Level: Vendor Undefined
  • Current Rating: 3.15A
  • Breaking Capacity @ Rated Voltage: 1.5kA
