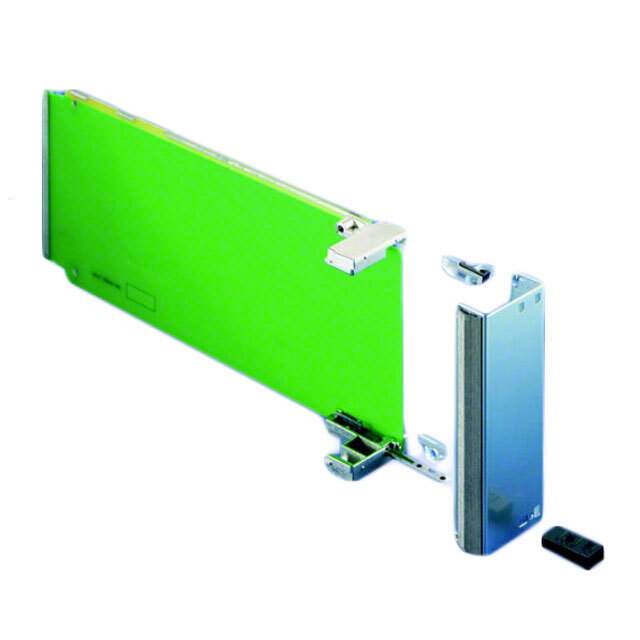

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Boxes, Enclosures, Racks - Box Components
Mfr Schroff
Package Bulk
Product Status Active
Type Panel, Front
Features Handles
For Use With/Related Products AdvancedMC, MicroTCA Systems
Size / Dimension 0.512" L x 0.748" W x 2.906" H (13.00mm x 19.00mm x 73.80mm)
Color Natural
Material Metal, Stainless Steel
Standard Package 2 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 7326.90.8688
Win Source Part Number 1179085-20849128
Ultra Librarian 3D Model Ultra Librarian 20849128 CAD Model

Description

The 20849128 is a panel front box component from Schroff.

  • For Use With/Related Products: AdvancedMC, MicroTCA Systems
  • Type: Panel Front Box
  • Material: Metal, Stainless Steel
  • Features: Handles
  • Size / Dimension: 0.512" L x 0.748" W x 2.906" H
  • Standard Package: 2
  • Product Status: Active
  • REACH Status: REACH Unaffected
