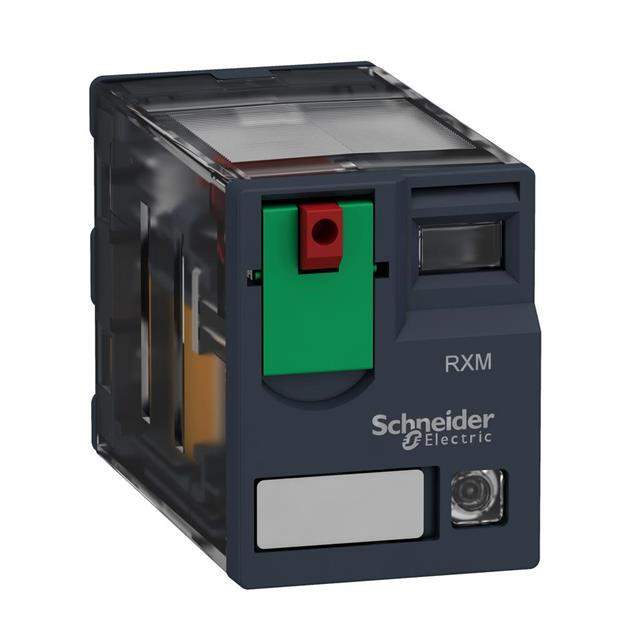

RXM4AB2P7

Part No RXM4AB2P7
Manufacturer Schneider Electric
Catalog Power Relays, Over 2 Amps
Description HARMONY, MINIATURE PLUG-IN RELAY / General Purpose Relay 4PDT (4 Form C) 230VAC Coil Socketable
Datasheet
RXM4AB2P7 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Schneider Electric
Series Harmony
Package Box
Mounting Type Socketable
Coil Voltage 230VAC
Contact Form 4PDT (4 Form C)
Contact Rating (Current) 5 A
Switching Voltage 250VAC, 28VDC - Max
Coil Current 15.3 mA
Coil Type Non Latching
Features Lighted Indicator, Test Button
Termination Style Plug In
Must Operate Voltage 184 VAC
Must Release Voltage 34.5 VAC
Operate Time 20 ms
Release Time 20 ms
Temperature Range - Operating -40°C ~ 55°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 15 kOhms
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.49.0050
Other Names 4008-RXM4AB2P7
Standard Package 1
Win Source Part Number 1089466-RXM4AB2P7
Ultra Librarian 3D Model Ultra Librarian RXM4AB2P7 CAD Model

Description

The Harmony Power Relay is a general-purpose relay that is part of the Harmony series. Harmony Power Relay manufactured by Schneider Electric.

  • Series: Harmony
  • Termination Style: Plug-In
  • Package: Box
  • Contact Form: 4PDT
  • Contact Material: Silver Nickel
  • Coil Resistance: 15 kOhms
  • Coil Voltage: 230VAC
  • Contact Rating: 5 A
  • Switching Voltage: Up to 250VAC and 28VDC
  • Operate and Release Time: 20ms
  • Features: Lighted Indicator and Test Button
  • Mounting Type: Socketable
  • Operating Temperature: -40°C to 55°C
  • Alternative Parts: 9-1419111-8, PT570T30, MY4 AC220/240 (S), HJ4LAC200V, HJ4-AC240V
