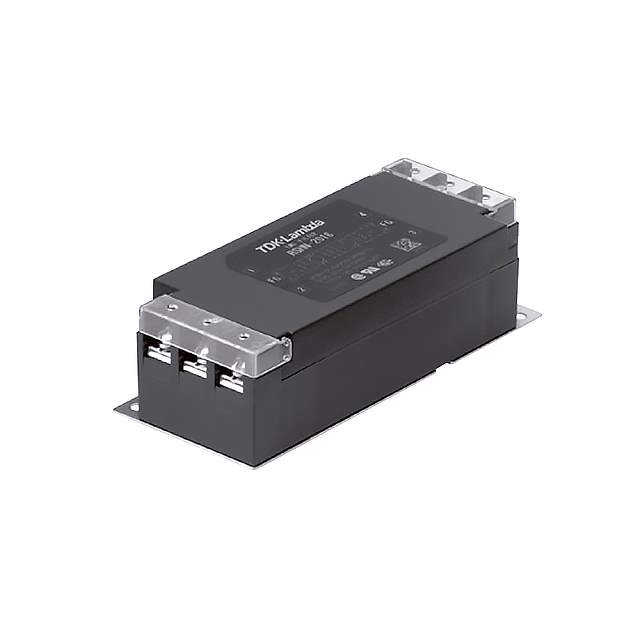

RSHN-2020L Real Image
Same model may have multiple batches, images only for reference.

RSHN-2020L

Part No RSHN-2020L
Manufacturer TDK-Lambda Americas Inc.
Catalog Power Line Filter Modules
Description LINE FILTER 250VDC/VAC 20A CHASS / Power Line Filter 60Hz 20A 250VAC/250VDC Terminal Block Flange Mount
Datasheet
RSHN-2020L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK-Lambda Americas Inc.
Series RSHN
Filter Type Single Phase
Configuration Two Stage
Voltage - Rated DC 250V
Voltage - Rated AC 250V
Current 20A
Applications General
Approvals CSA, EN, UL
Operating Temperature Range -25°C ~ 85°C
Mounting Chassis Mount
Termination Style Terminal Block
Win Source Part Number 793391-RSHN-2020L
Popularity Medium
Supply and Demand Status Limited
Family Name RSHN
Introduction Date September 20, 2008
ECCN EAR99
Country of Origin China
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian RSHN-2020L CAD Model

Description

The RSHN-2020L is a two-stage single-phase filter manufactured by TDK-Lambda Americas Inc.

  • Current Rating: 20A
  • Voltage Rating DC: 250V
  • Voltage Rating AC: 250V
  • Approvals: CSA, EN, UL
  • Series: RSHN
