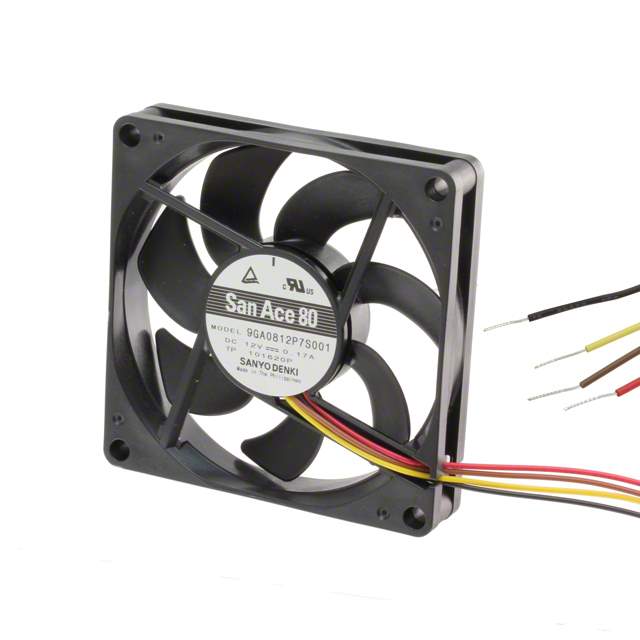

9GA0812P7G001

Part No 9GA0812P7G001
Manufacturer Sanyo Denki America Inc.
Catalog Fans, Thermal Management
Description FAN AXIAL 80X15MM 12VDC WIRE / Fan Tubeaxial 12VDC Square - 80mm L x 80mm H Ball 50.9 CFM (1.43m³/min) 4 Wire Leads
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Sanyo Denki America Inc.
Series San Ace 80
Package Box
Voltage - Rated 12VDC
Size / Dimension Square - 80mm L x 80mm H
Width 15.00mm
Air Flow 50.9 CFM (1.43m³/min)
Static Pressure 0.337 in H2O (83.9 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features PWM Control, Speed Sensor (Tach)
Noise 41.0dB(A)
Power (Watts) 3.48 W
RPM 6100 RPM
Termination 4 Wire Leads
Temperature Range - Operating -4 ~ 158°F (-20 ~ 70°C)
Approval Agency CSA, TUV, UL
Weight 0.143 lb (64.86 g)
Current Rating (Amps) 0.290A
Voltage Range 10.2 ~ 13.8VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 40000 Hrs @ 60°C
Base Product Number 9GA0812
Standard Package 48
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1350114-9GA0812P7G001
Ultra Librarian 3D Model Ultra Librarian 9GA0812P7G001 CAD Model

Description

The Sanyo Denki America Inc San Ace 80 DC brushless fan from Sanyo Denki America Inc is a high-quality fan designed for thermal management. With a voltage rating of 12VDC and a power rating of 3.48 W, this fan is perfect for a range of applications.

  • Voltage Rating: 12VDC
  • Power Rating: 3.48 W
  • Size: 80mm L x 80mm H
  • Fan Shape: Square
  • Air Flow: 50.9 CFM (1.43m³/min)
  • Static Pressure: 0.337 in H2O (83.9 Pa)
  • Bearing Type: Ball
  • Product Status: Active
