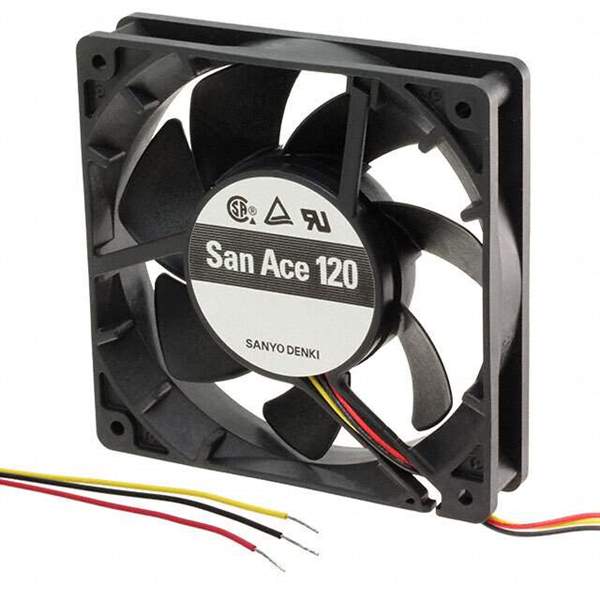

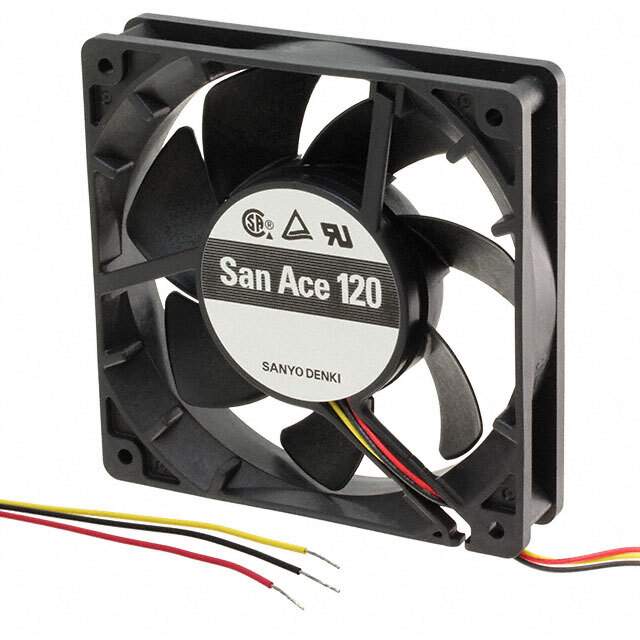

9G1248F401 Real Image
Same model may have multiple batches, images only for reference.

9G1248F401

Part No 9G1248F401
Manufacturer Sanyo Denki America Inc.
Catalog Fans, Thermal Management
Description FAN AXIAL 119X25MM 48VDC WIRE / Fan Tubeaxial 48VDC Square - 119mm L x 119mm H Ball 70.0 CFM (1.96m³/min) 3 Wire Leads
Datasheet
9G1248F401 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Sanyo Denki America Inc.
Series San Ace 120
Package Box
Voltage - Rated 48VDC
Size / Dimension Square - 119mm L x 119mm H
Width 25.00mm
Air Flow 70.0 CFM (1.96m³/min)
Static Pressure 0.169 in H2O (42.1 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Speed Sensor (Tach)
Noise 35.0dB(A)
Power (Watts) 2.88 W
RPM 2250 RPM
Termination 3 Wire Leads
Temperature Range - Operating -4 ~ 158°F (-20 ~ 70°C)
Approval Agency CSA, TUV, UL
Weight 0.529 lb (239.95 g)
Current Rating (Amps) 0.060A
Voltage Range 40.8 ~ 55.2VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 40000 Hrs @ 60°C
Base Product Number 9G1248
Standard Package 30
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1350110-9G1248F401
Ultra Librarian 3D Model Ultra Librarian 9G1248F401 CAD Model

Description

The San Ace 120 series of DC brushless fans (BLDC) from Sanyo Denki America Inc. is a reliable cooling solution for electronic equipment. San Ace 120 is manufactured by Sanyo Denki America Inc..

  • Voltage - Rated: 48VDC
  • Power (Watts): 2.88W
  • Noise: 35.0dB(A)
  • Size / Dimension: 119mm L x 119mm H
  • Weight: 0.529 lb (239.95 g)
  • RPM: 2250 RPM
  • Air Flow: 70.0 CFM (1.96m³/min)
  • Termination: 3 Wire Leads
  • Features: Speed Sensor (Tach)
  • Frame Material: Plastic
  • Blade Material: Plastic
  • Operating Temperature: -4 ~ 158°F (-20 ~ 70°C)
  • Approvals: CSA, TUV, UL
  • ECCN: EAR99
