Same model may have multiple batches, images only for reference.

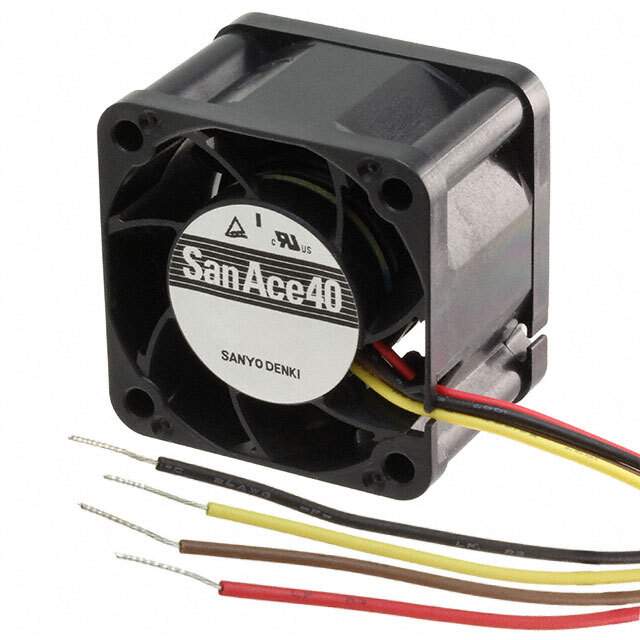

9GA0412P3J01 Real Image
Same model may have multiple batches, images only for reference.

9GA0412P3J01

Part No 9GA0412P3J01
Manufacturer Sanyo Denki America Inc.
Catalog DC Fans
Description FAN 40X28MM 12VDC TACH,PWM / Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Ball 23.7 CFM (0.664m³/min) 4 Wire Leads
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>DC Brushless Fans (BLDC)
Mfr Sanyo Denki America Inc.
Series San Ace 40
Package Box
Voltage - Rated 12VDC
Dimension Square - 40mm L x 40mm H
Width 28.00mm
Air Flow 23.7 CFM (0.664m³/min)
Static Pressure 2.150 in H2O (535.0 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Noise 54.0dB(A)
Power (Watts) 5.88 W
RPM 18000 RPM
Termination 4 Wire Leads
Temperature Range - Operating -4 ~ 158°F (-20 ~ 70°C)
Approval Agency CSA, TUV, UL
Weight 0.117 lb (53.07 g)
Current Rating (Amps) 0.490A
Voltage Range 10.8 ~ 13.2VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 40000 Hrs @ 60°C
Base Product Number 9GA0412
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8414.59.6590
Other Names 1688-1543
Standard Package 126
Win Source Part Number 1188602-9GA0412P3J01
Ultra Librarian 3D Model Ultra Librarian 9GA0412P3J01 CAD Model

Description

The San Ace 40 series DC brushless fan is a reliable and efficient cooling solution for electronic devices.

  • Voltage Rating: 12VDC
  • Power: 5.88W
  • Air Flow: 23.7 CFM
  • Static Pressure: 2.150 in H2O
  • Features: Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
  • Bearing Type: Ball
  • Design: Tubeaxial
  • Noise Level: 54.0dB(A)
  • Speed: 18000 RPM
  • Frame Material: Plastic
  • Blade Material: Plastic
  • Operating Temperature: -4 ~ 158°F (-20 ~ 70°C)
  • Lifetime: 40000 Hrs @ 60°C
  • Leads: 4 Wire Leads
  • Packaging: Box
  • Ingress Protection: -
  • Approvals: CSA, TUV, UL
  • Dimension: Square - 40mm L x 40mm H
  • Weight: 0.117 lb (53.07 g)
