Same model may have multiple batches, images only for reference.

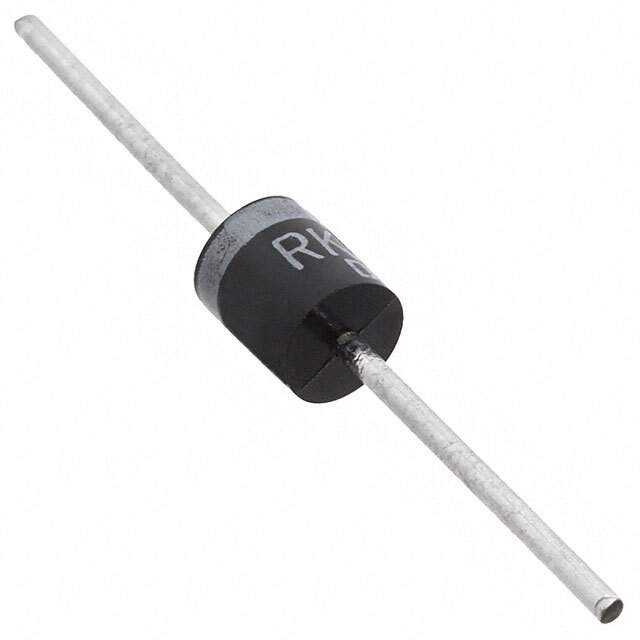

RK 46 Real Image
Same model may have multiple batches, images only for reference.

RK 46

Part No RK 46
Manufacturer Sanken
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 60V 3.5A AXIAL  /  Diode Schottky 60 V 3.5A Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Sanken
Package Bulk
Product Status Obsolete
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 60 V
Current - Average Rectified (Io) 3.5A
Voltage - Forward (Vf) (Max) @ If 620 mV @ 3.5 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 3 mA @ 60 V
Mounting Type Through Hole
Package / Case Axial
Operating Temperature - Junction -40°C ~ 150°C
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names RK 46 DK,RK 46-ND,RK46
Standard Package 500
Win Source Part Number 1088506-RK 46
Ultra Librarian 3D Model Ultra Librarian RK 46 CAD Model

Description

The Sanken RK 46 is a fast recovery Schottky diode that belongs to the Diodes - Rectifiers - Single category.

  • Package: Bulk
  • Standard Package: 500
  • Maximum DC Reverse Voltage: 60 V
  • Average Rectified Current: 3.5A
  • Maximum Forward Voltage: 620 mV @ 3.5 A
  • Current Reverse Leakage @ Vr: 3 mA @ 60 V
  • Mounting: Through hole
  • Package/Case: Axial
  • Alternative Parts: 1N5822-E3/54, DSA26G, 1N5818-E3/54, 1N914B-TP, MPG06GHE3_A/73, DSK10B-BTRK 46 DK, and RK46
  • HTSUS Code: 8541.10.0080
