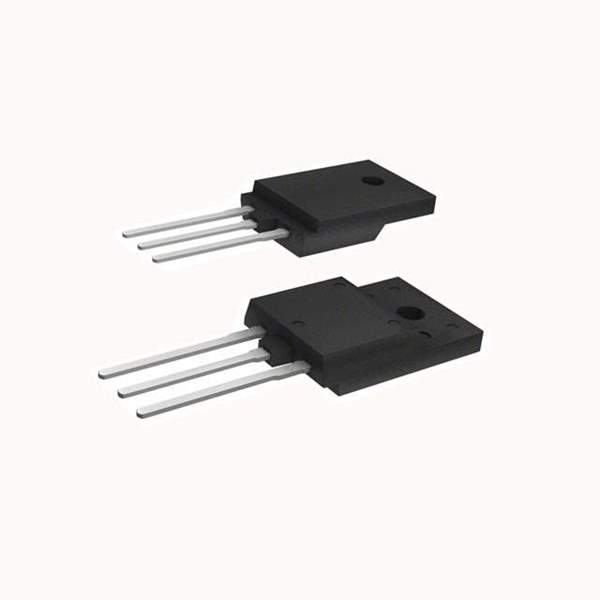

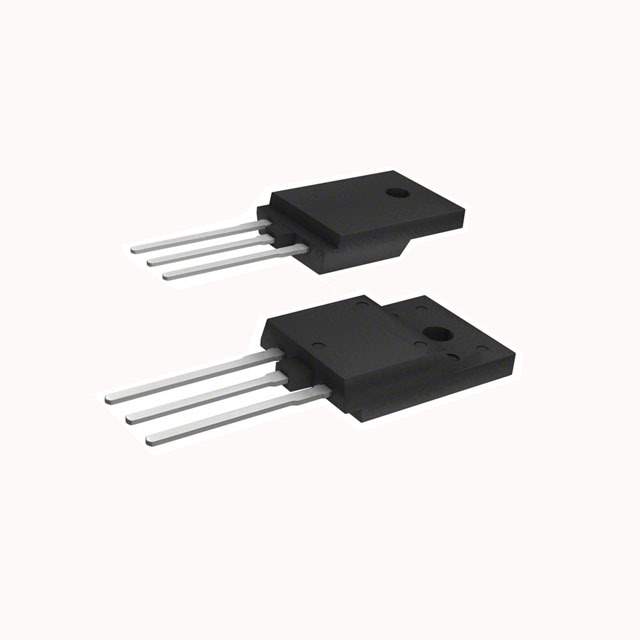

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Sanken
Packaging Bulk
Status Active
VCEO Maximum Collector-Emitter Breakdown Voltage 600V
Maximum Current Collector 50A
Pulsed Collector Current 100A
Collector-emitter saturation voltage(Max) 2.4V @ 15V, 50A
Maximum Power Dissipation 150W
Input Type Standard
Turn-on and Turn-off delay time 75ns/300ns
Testing Conditions 300V, 50A, 39 Ohm, 15V
Reverse Recovery Time (trr) 300ns
Temperature Range - Operating 150°C (TJ)
Mounting Through Hole
Case / Package TO-3P
Win Source Part Number 208276-MGD623S
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Portable Devices, Consumer Electronics, Power Management, Computers & Computer Peripherals, Industrial
Ultra Librarian 3D Model Ultra Librarian MGD623S CAD Model

Description

The MGD623S is a TO-3P IGBT transistor that is manufactured by Sanken.

  • Maximum Collector-Emitter Breakdown Voltage: 600V
  • Maximum Power Dissipation: 150W
  • Reverse Recovery Time: 300ns
  • Collector-Emitter Saturation Voltage: 2.4V @ 15V, 50A
  • Temperature Range: 150°C (TJ)
  • Applications: portable devices, consumer electronics, power management, computers & computer peripherals, and industrial applications
  • Manufacturer: Sanken
