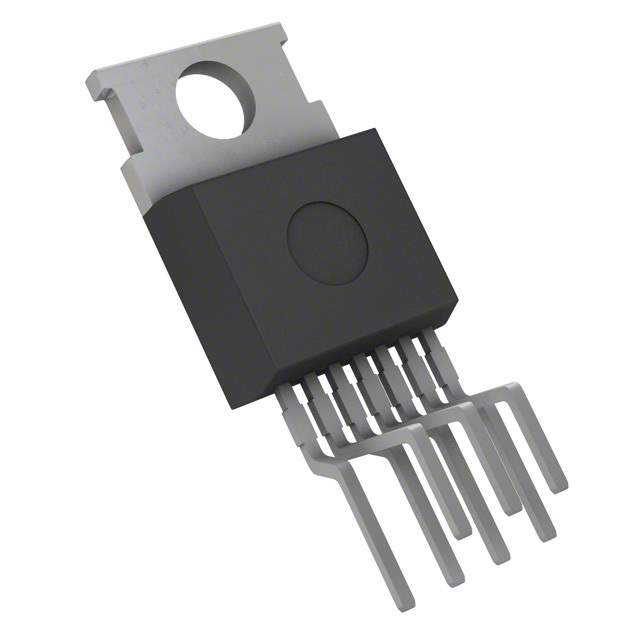

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Sanken
Packaging Bulk
Type AC DC Offline Switcher
Internal Switch(s) Yes
Number of Outputs 1
Voltage Supply MAX 20V
Operating Temperature Range -55°C ~ 115°C (TA)
Mounting Style Through Hole
Package TO-220-7 (Formed Leads)
Manufacturer Package TO-220F-7
Win Source Part Number 1195499-LC5546LF
Manufacturer Homepage www.sanken-ele.co.jp/en
Popularity Medium
Supply and Demand Status Limited
Family Name LC5546LF
Introduction Date March 07, 2012
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian LC5546LF CAD Model

Description

The LC5546LF from Sanken is an AC DC offline switcher that is designed for through-hole mounting.

  • Voltage Supply: 20V
  • Temperature Range: -55°C to 115°C (operating)
  • Package: TO-220-7 (Formed Leads)
  • Family Name: LC5546LF
  • Popularity: medium
  • Application: integrated circuits (ICs)
