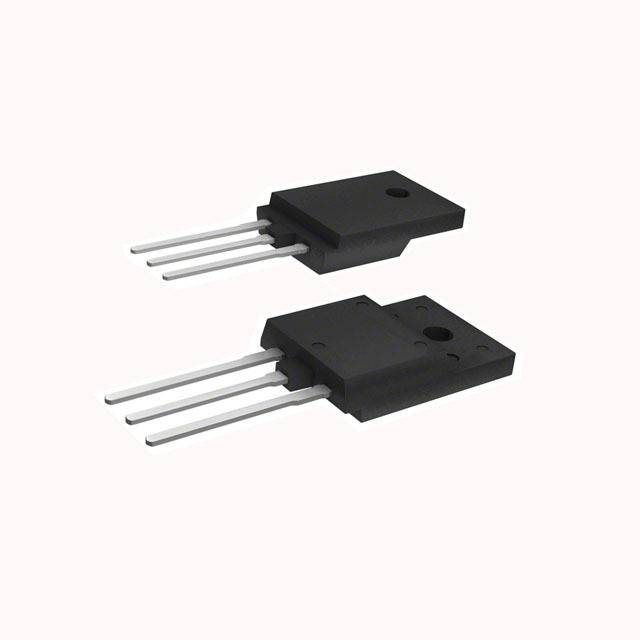

Same model may have multiple batches, images only for reference.
FMXA-4203S Sanken
Same model may have multiple batches, images only for reference.

FMXA-4203S

Part No FMXA-4203S
Manufacturer Sanken
Catalog Diodes, Rectifiers - Arrays
Description Ultrafast Recovery Diode
Datasheet
FMXA-4203S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Sanken
Packaging Bulk
Diode Configuration 1 Pair Common Cathode
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 300V
Current - Average Rectified (Io) (per Diode) 20A
Voltage - Forward (Vf) (Maximum) @ If 1.3V @ 10A
Speed Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 25ns
Current - Reverse Leakage @ Vr 100μA @ 300V
Operating Temperature - Junction -40°C ~ 150°C
Mounting Style Through Hole
Package TO-3P-3 Full Pack
Manufacturer Package TO-3PF
Win Source Part Number 1174914-FMXA-4203S
Manufacturer Homepage www.sanken-ele.co.jp/en
Popularity Medium
Supply and Demand Status Limited
Family Name FMXA-4203S
Introduction Date November 06, 2006
ECCN EAR99
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian FMXA-4203S CAD Model

Description

The Sanken FMXA-4203S is a fast recovery diode that is commonly used in power electronics applications.

  • Supply and Demand Status: Limited
  • Popularity Rating: Medium
  • Maximum Reverse Voltage: 300V
  • Average Rectified Current: 20A
  • Reverse Recovery Time: 25ns
  • Forward Voltage Drop: 1.3V @ 10A
  • Package: TO-3P-3 full pack
  • Junction Temperature Range: -40°C to 150°C
