Same model may have multiple batches, images only for reference.

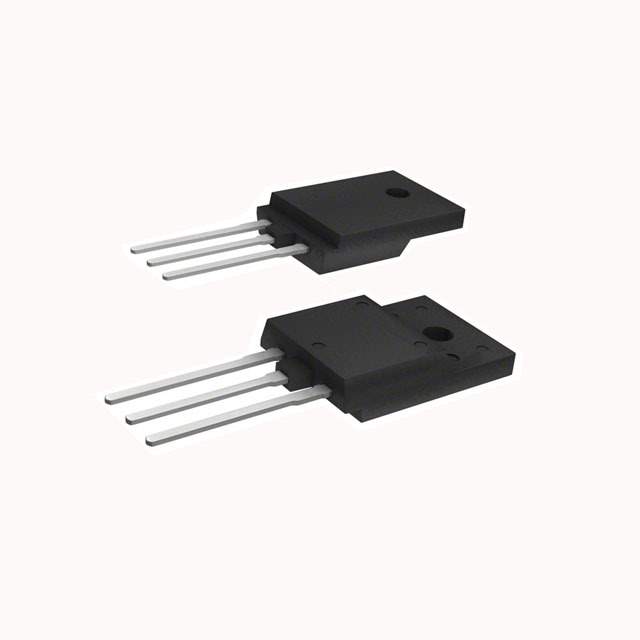

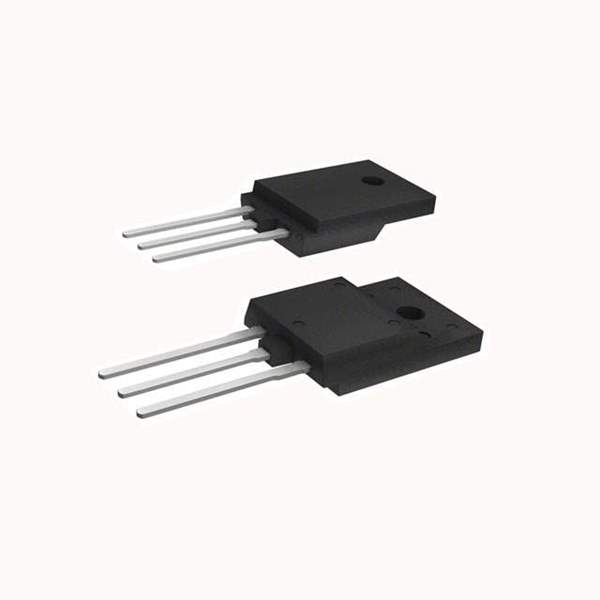

FMD-4206S Real Image
Same model may have multiple batches, images only for reference.

FMD-4206S

Part No FMD-4206S
Manufacturer Sanken
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY GP 600V 20A TO3PF / Diode Switching 600V 20A 3-Pin(3+Tab) TO-3PF
Datasheet
FMD-4206S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Sanken
Packaging Bulk
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 600V
Current - Average Rectified (Io) (per Diode) 20A
Voltage - Forward (Vf) (Maximum) @ If 1.7V @ 10A
Speed Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 50ns
Current - Reverse Leakage @ Vr 100μA @ 600V
Operating Temperature - Junction -40°C ~ 150°C
Mounting Style Through Hole
Package TO-3P-3 Full Pack
Manufacturer Package TO-3PF
Win Source Part Number 774627-FMD-4206S
Popularity Medium
Supply and Demand Status Limited
Family Name FMD-4206S
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian FMD-4206S CAD Model

Description

The Sanken FMD-4206S is a standard diode manufactured by Sanken.

  • Current: 20A
  • Maximum DC Reverse Voltage: 600V
  • Voltage Drop: 1.7V @ 10A
  • Reverse Recovery Time: 50ns
  • Package: TO-3P-3 Full Pack
  • Mounting: Through Hole
  • Operating Temperature: -40°C to 150°C
