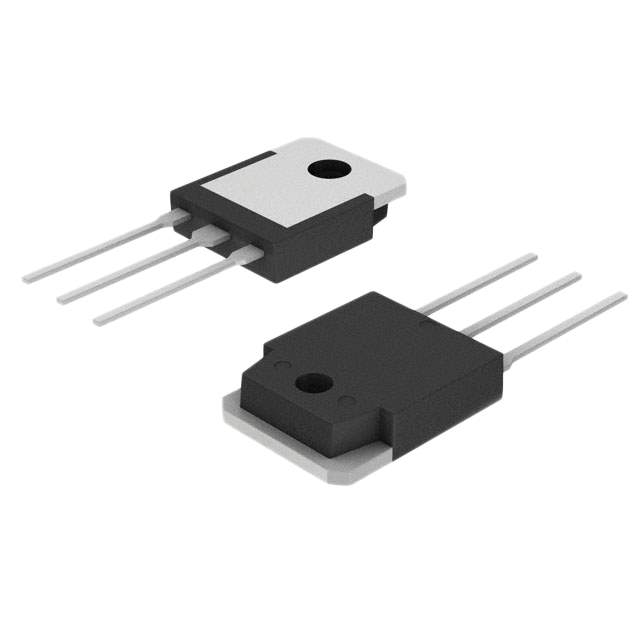

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Sanken
Packaging Bulk
Transistor Type PNP
Current - Collector (Ic) (Maximum) 14A
Voltage - Collector Emitter Breakdown (Maximum) 150V
Vce Saturation (Maximum) at Ib, Ic 2V at 500mA, 5A
Current - Collector Cutoff (Maximum) 100μA (ICBO)
DC Current Gain (hFE) (Minimum) at Ic, Vce 50 at 5A, 4V
Maximum Power 125W
Frequency - Transition 50MHz
Temperature Range - Operating 150°C
Mounting Style Through Hole
Manufacturer Package TO-3P-3, SC-65-3
Supplier Device Package TO-3P
Manufacturer Pack Quantity 1,020
MSL Level 1 (Unlimited)
Win Source Part Number 1124411-2SA1303
Manufacturer Homepage www.sanken-ele.co.jp/en
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 2SA1303 CAD Model

Description

The Sanken electronic component has a Win Source Part Number of 1124411-2SA1303.

  • Component Type: Transistor
  • Category: Discrete Semiconductor Products
  • Transistor Type: PNP
  • Frequency of Transition: 50MHz
  • Supplier Device Package: TO-3P
  • Operating Temperature Range: 150°C
  • Maximum Current - Collector (Ic): 14A
  • Maximum Voltage - Collector Emitter Breakdown: 150V
  • Alternative Parts (Cross-Reference): 2STW1695, 2SA1695, and FJAF4210Y
  • Quality: Reliable and durable
