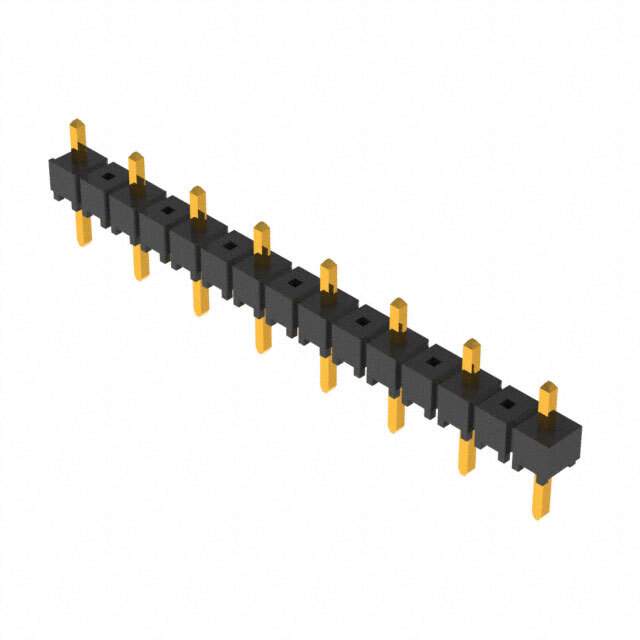

TSW-208-05-G-S

Name: TSW-208-05-G-S
Brand: Samtec Inc.
SKU: 521050
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TSW-208-05-G-S
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	.025" SQ. TERMINAL STRIPS
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Samtec Inc.
Packaging	Bulk
Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.200" (5.08mm)
Style	Board to Board or Cable
Shrouding	Unshrouded
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	1
Mounting	Through Hole
Termination	Solder
Contact Length - Mating	0.105" (2.67mm)
Contact Length - Post	0.130" (3.30mm)
Overall Contact Length	0.335" (8.51mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10μin (0.25μm)
Contact Finish - Post	Gold
Insulation Material	Polybutylene Terephthalate (PBT)
Temperature Range - Operating	-55°C to 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Contact Finish Thickness - Post	3μin (0.08μm)
Win Source Part Number	1104157-TSW-208-05-G-S
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian TSW-208-05-G-S CAD Model

Alternative Products

Description

The Samtec Inc. TSW-208-05-G-S is an 8-position, board-to-board or cable interconnect from Samtec Inc.

Shrouding: Unshrouded
Mounting Style: Through-hole
Pitch-Mating: 0.200” (5.08mm)
Row Spacing: -
Voltage Rating: -
Current Rating: -
Insulation Material: Polybutylene terephthalate (PBT)
Insulation Color: Black
Contact Finish-Mating: Gold
Contact Finish-Post: Gold
