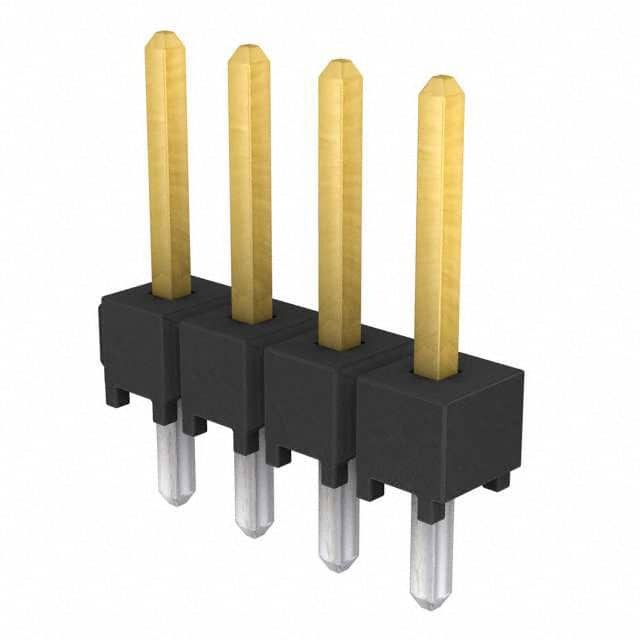

TSW-104-07-F-S

Name: TSW-104-07-F-S
Brand: Samtec Inc.
SKU: 849814
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TSW-104-07-F-S
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 4POS 2.54MM / Connector Header Through Hole 4 position 0.100" (2.54mm)
Datasheet	TSW-104-07-F-S Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	TSW
Package	Bag
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	4
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.100" (2.54mm)
Overall Contact Length	0.430" (10.92mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3.00µin (0.076µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Polybutylene Terephthalate (PBT)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Base Product Number	TSW-104
Standard Package	1 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	849814-TSW-104-07-F-S
Ultra Librarian 3D Model	Ultra Librarian TSW-104-07-F-S CAD Model

Alternative Products

Description

The 849814-TSW-104-07-F-S from the TSW series by Samtec Inc. offers reliable and high-performance connectivity.

Connector Type: Rectangular Connector
Header Type: Header
Contact Type: Male Pin
Number of Positions: 4
Number of Rows: 1
Fastening Type: Push-Pull
Mounting Type: Through-Hole
Pitch: 0.100 inches (2.54mm)
Contact Material: Phosphor Bronze
Insulation Material: Polybutylene Terephthalate (PBT)
Insulation Color: Black
Temperature Range: -55°C to 125°C
Flammability Rating: UL94 V-0
Package: Bag
Quantity per Package: 1 Piece
